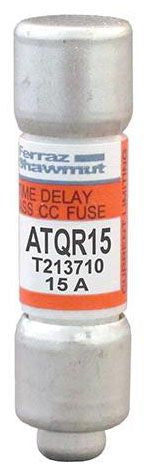

Mersen EP ATQR15 Low Voltage UL Power Fuse
Regular price
$18.49
Couldn't load pickup availability
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids and similar inductive loads. Mersen's ATQR fuses provide superior protection for the branch circuits of electrical distribution system.
Specifications:
Type: Class CC
Characteristics: Time Delay
Voltage Rating: 600 Volt AC, 300 Volt DC
Current Rating: 15 Amp
Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.5 Inch
Approval: UL 248/248-4, CSA C22.2
