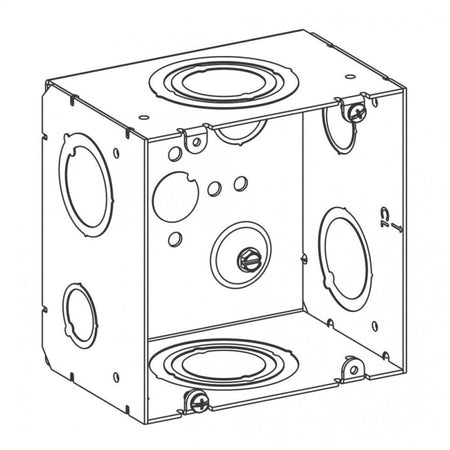

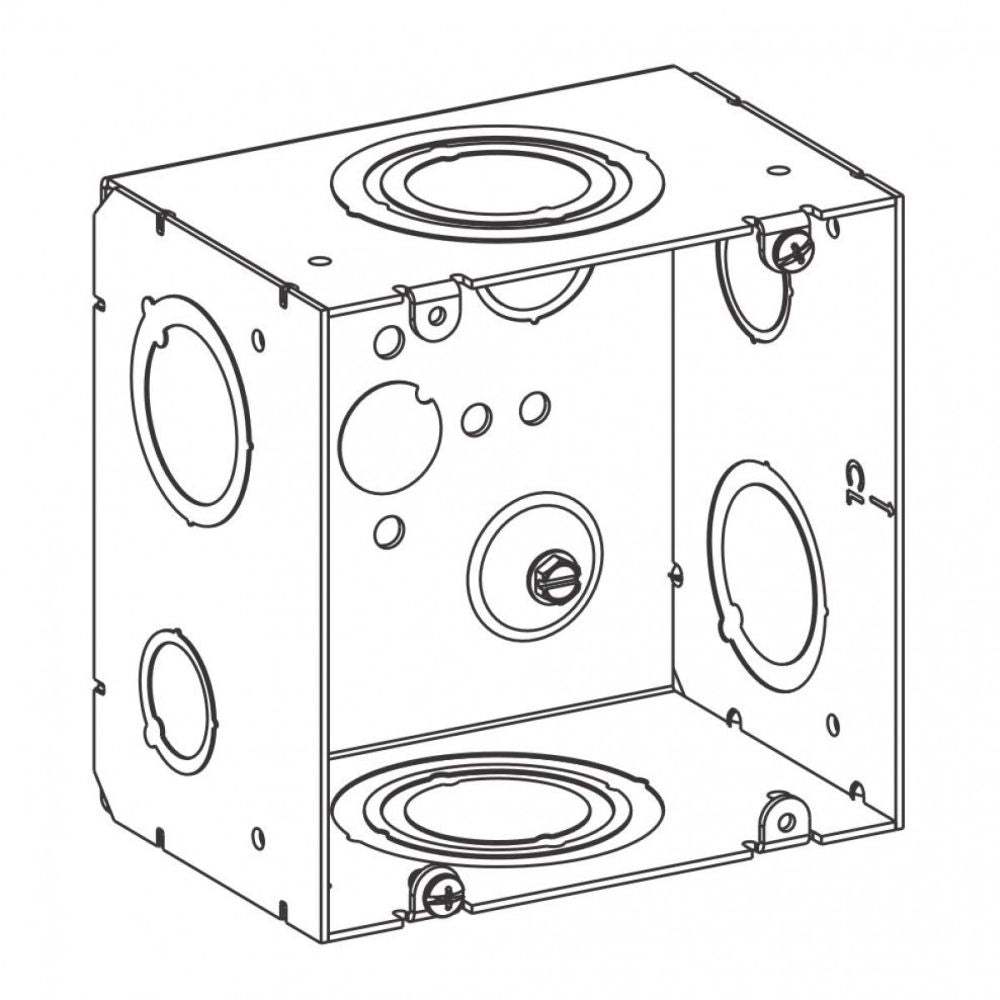

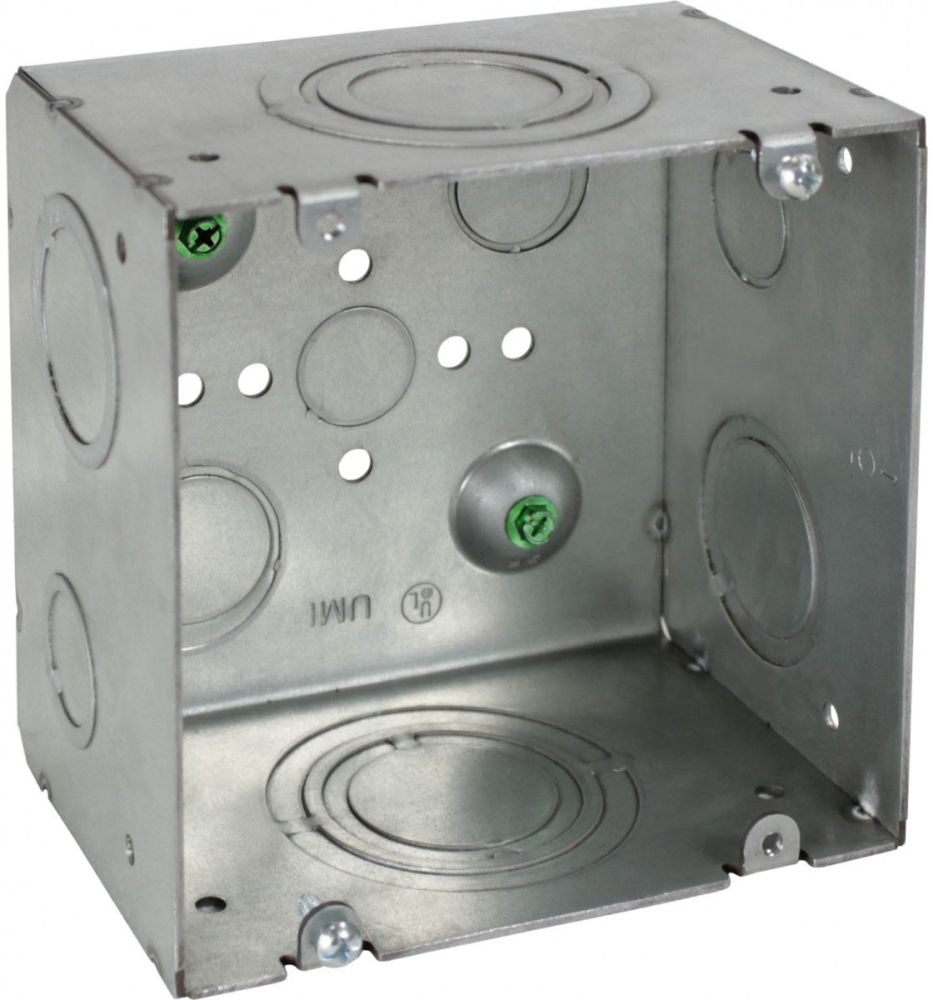

Orbit Industries T5B-200 Electrical Square Box

  • Sale
  • Regular price $11.38
Shipping calculated at checkout.


More than Double the Capacity of Standard 4 Inch Square Box; Increased Capacity Easily Meets Minimum Bend Radius Requirements for an Easier Installation; Supports All Current Copper Cat and Fiber Optic Cables in Addition to Predicted Cable Size Increases; Extra Space in the Box Reduces the Chance of Short Circuits and Ground Faults Due to Cramped Spaces and Cable Stress; RoHS Compliant

Specifications:

Height: 5 Inch
Width: 5 Inch
Depth: 3-1/4 Inch
Capacity: 75.6 Cu Inch
Number of Knockouts: 11
Knockout Location: (5) Bottom, (6) Side
Knockout Size: (1) 1/2 Inch and 3/4 Inch Bottom, (1) 3/4 Inch and 1 Inch Bottom, (1) 1/2 Inch Bottom, (2) Ground Screw, (2) 1 Inch to 2 Inch Concentric Side, (2) 1 Inch and 1-1/4 Inch, (2) 1/2 Inch and 3/4 Inch Side
Material: 16 Gauge Welded Sheet Steel
Standard Package: 12
Approval: UL (Canada and US)


Documents:
