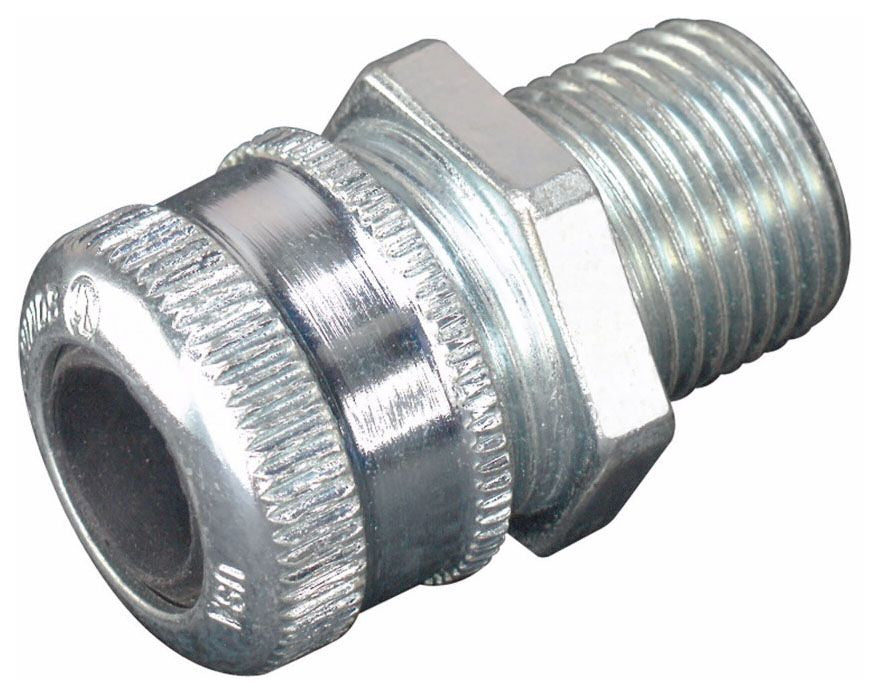

Crouse-Hinds CGB193 Cable Gland

Crouse-Hinds series CGB, CGD, CGE and CGFP non-armored glands are installed to provide a means for passing a cord, unarmored cable or flexible conduit into an enclosure. The glands form an environmental seal for cord or unarmored round cables, and they form a secure connection or termination for flexible cord, cable (unarmored) or flexible conduit. These cable glands are listed for use with flexible cords, including Type S, SO, STO, ST, SJ, SJT, SJTO and SVO. They are also listed for use with tray cable types TC, TC-ER, TC-ER-HLA, ITC, ITC-ER, ITC-HL, PLTC and PLTC-ER. When installed in accordance with NEC501.10(B)(4), CGB, CGD, CGE and CGFP non-armored glands are suitable for use in Class I, Division 2 hazardous locations.

Specifications:

Type: Non-Armored, Straight, Male Threaded
Thread Size: 1/2 Inch Threaded
Constructional Feature: Weatherproof
Cable Type: Non-Armored, Tray
Cable Outer Diameter: 0.25 to 0.375 Inch
Material: Zinc Electroplated Chromate Coated Steel (Body/Gland Nut)
Length: 2.063 Inch
Enclosure: Class I Div 2, NEMA 3R
Operating Temperature: -25 to 40 Deg C
Approval: UL (Canada and US)
