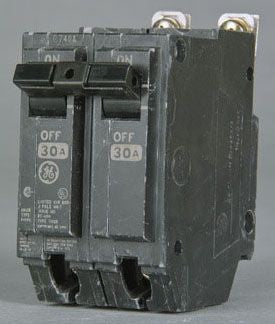

Q-Line Circuit Breakers are 1-Inch Wide per Pole, Compact, Thermal-Magnetic Devices Designed for Residential and Commercial Applications; The QB Breakers are Bolt-On Versions of the Q-Line Used for Bolting to the Bus Connections of Load Centers and Lighting Panels; All Q-Line Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability

Specifications:

Type: Molded Case, Fixed Thermal Magnetic, Internal Common Trip
Number of Poles: 2
Voltage Rating: 240 VAC
Current Rating: 15 Ampere
Interrupting Rating: 10 Kiloampere
Terminal Type: Copper/Aluminum Load Lug, Bolt-On
Wire Size: 14 to 8 AWG (Copper)/12 to 8 AWG (Aluminum)
Mounting: 1 Inch Bolt-On
Used On: AQ Series Panelboard
Size: 2 Inch W x 2-3/8 Inch D x 3-9/32 Inch H
Approval: UL
