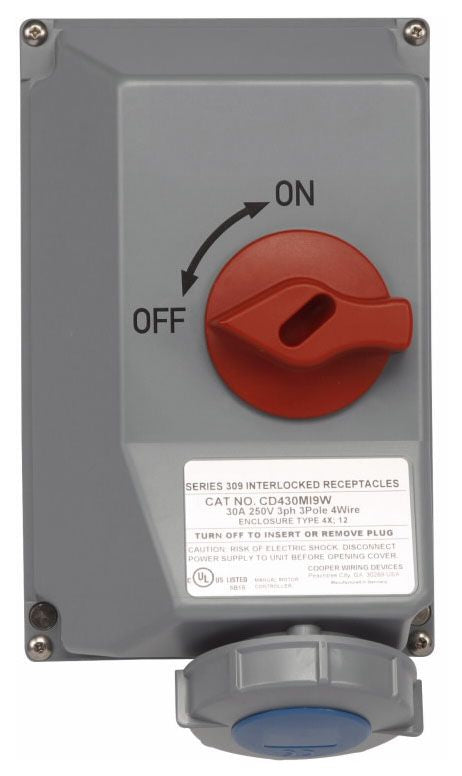

Arrow Hart CD430MI9W Pin and Sleeve Mechanical Interlock

Unique Locking Mechanism Ensures that Switch Can Only be Energized When Plug is Fully Mated; Poured-In Seamless Gasket and Tongue and Groove Design Yields the Ultimate Seal Against Moisture and Contamination; Blank Enclosures without Pre-Drilled Entries Allow Maximum Installation Flexibility; Watertight Hub and Double Grounding Blocks Provided; Dual Mounting Capability Using Corner Mounting Holes or Supplied Mounting Feet

Specifications:

Type: Mechanically Interlocked
Constructional Feature: Watertight
Voltage Rating: 250 VAC 3-Phase
Current Rating: 30 Ampere
Number of Poles: 3
Number of Wires: 4
Fuse Provision: Non-Fusible
Hub Type: 1 Inch
Material: Rugged Valox
