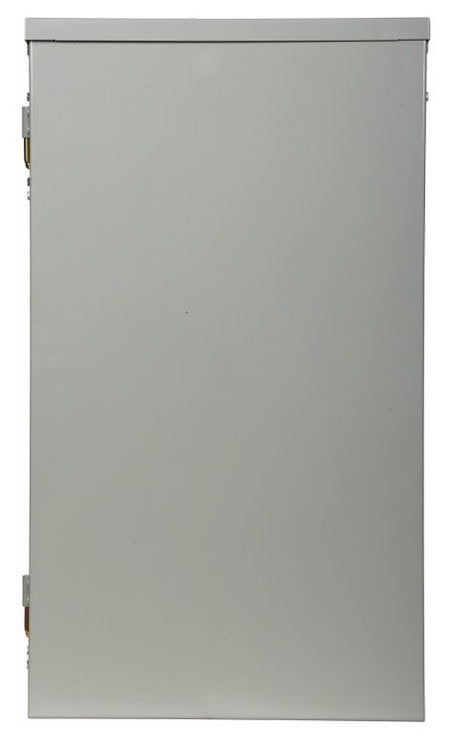

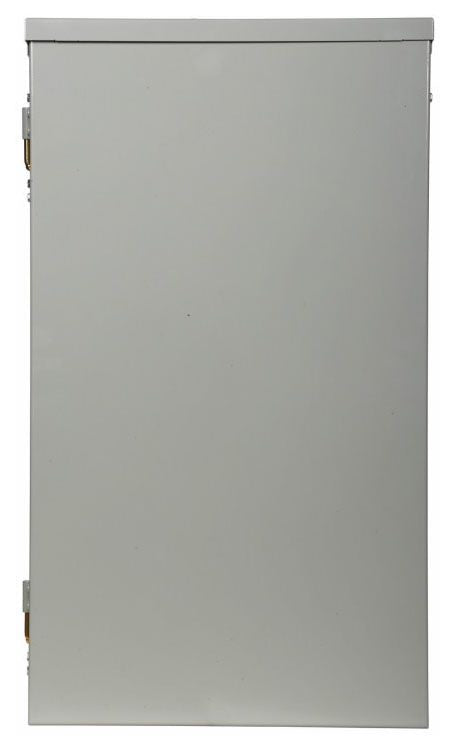

Eaton designs and manufactures loadcenters and circuit breakers that provide reliable power breaking and circuit protection.

Specifications:

Type: Main Breaker
Voltage Rating: 120/240 VAC
Current Rating: 125 Ampere
Circuit Configuration: 1-Phase 3-Wire
Maximum Number of Circuits: 24
Maximum Number of Spaces: (20) 1 Inch
Main Breaker Type: BR
Interrupting Rating: 10 Kiloampere
Neutral Type: Insulated/Bondable Split
Bus Material: Tin Plated Aluminum
Feed Location: Top/Bottom
Main Wire Size: 4 to 2/0 AWG (Aluminum/Copper)
Enclosure Type: NEMA 3R, Outdoor, Rainproof
Enclosure Size Designation: C3R
Size: 14-5/16 Inch W x 5-3/16 Inch D x 25 Inch H
Approval: UL
