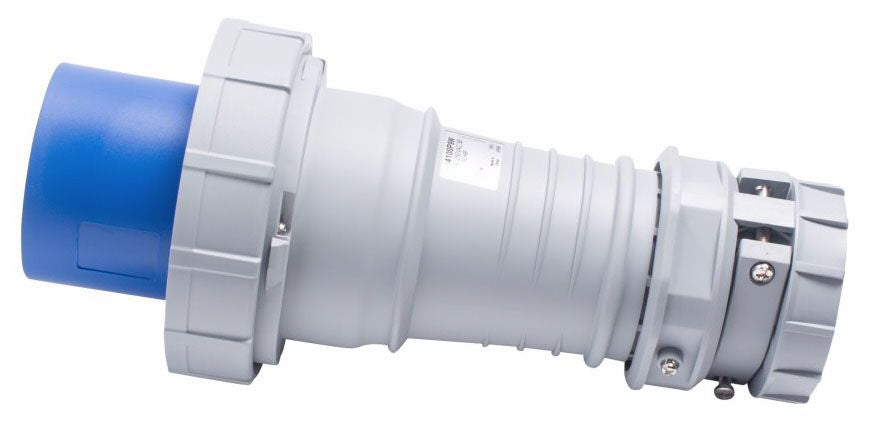

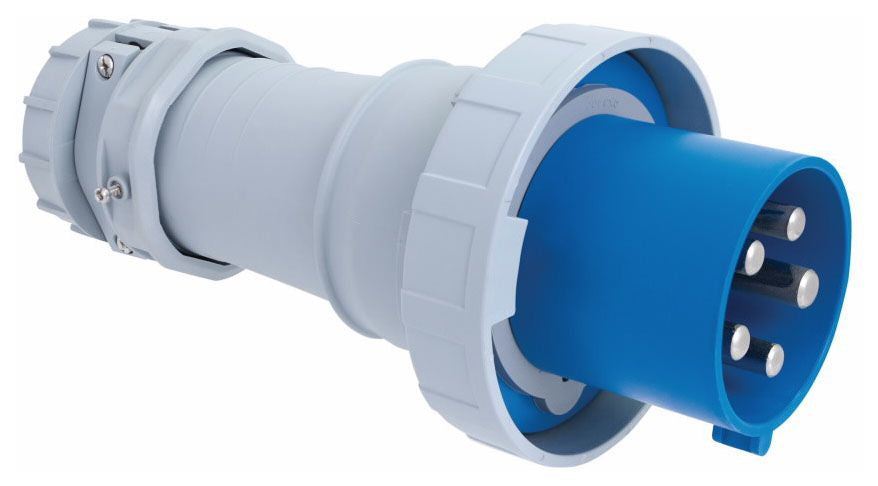

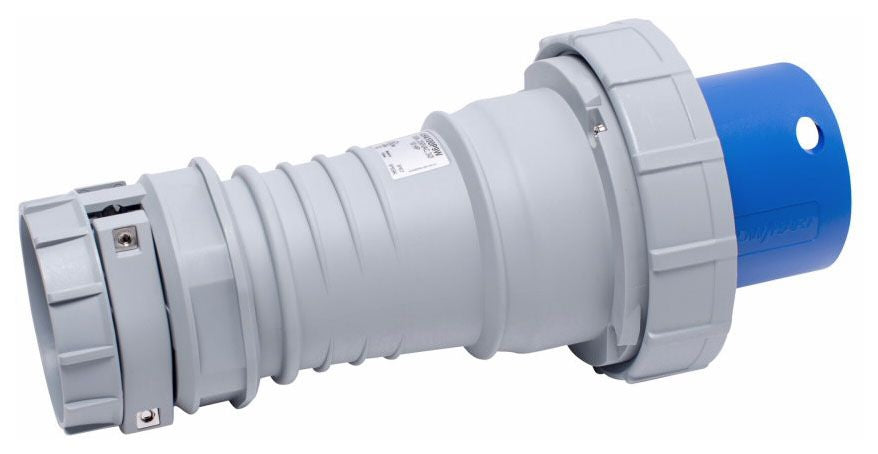

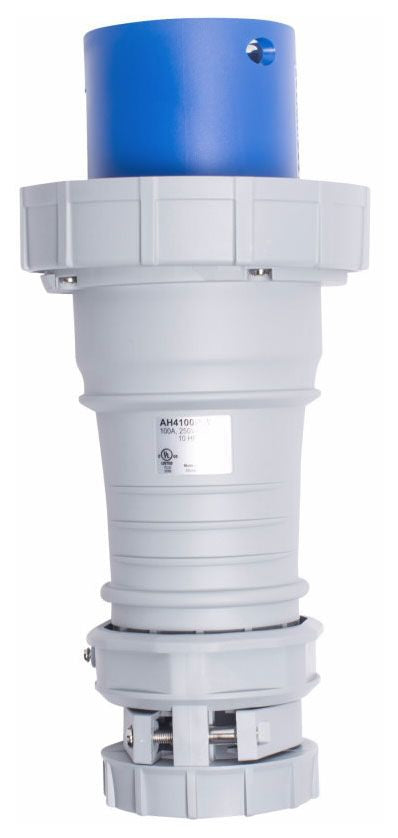

Arrow Hart AH4100P9W Pin and Sleeve Plug
Regular price
$464.72
Couldn't load pickup availability
Plugs have a Lockout Hole for Added Safety; Tri-Combo Hardware for Convenience; Inlet and Receptacle Mounting Footprint and Blind Holes Provide Interchangeability with Major Brands
Specifications:
Type: Straight
Constructional Feature: Watertight
Voltage Rating: 250 VAC 3-Phase
Current Rating: 100 Ampere
Number of Poles: 3
Number of Wires: 4
Minimum Cable Outer Diameter: 0.97 Inch
Maximum Cable Outer Diameter: 1.94 Inch
Material: Nylon PA66
Approval: UL 1682, UL 1686, CUL, CSA C22.2
