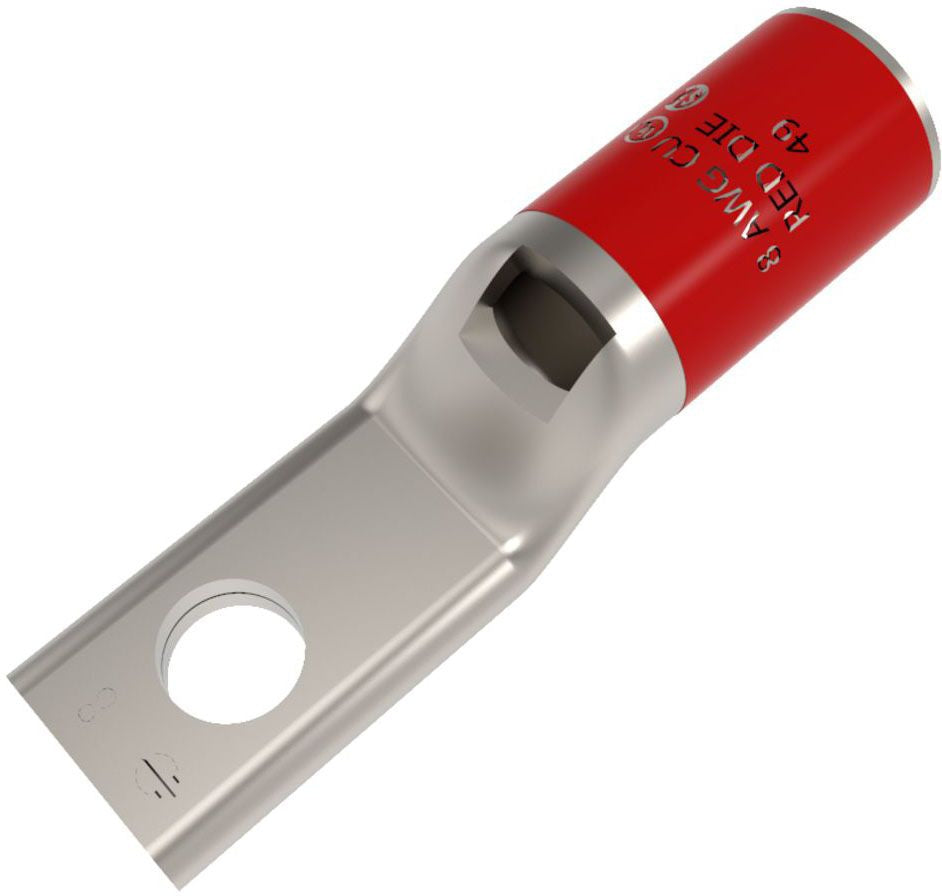

Burndy YA8CLNT8 Compression Terminal

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 37/24, 8 AWG (Weld), 6 AWG Solid, 8 AWG Solid/Stranded (Code)
Barrel Type: Standard, Straight

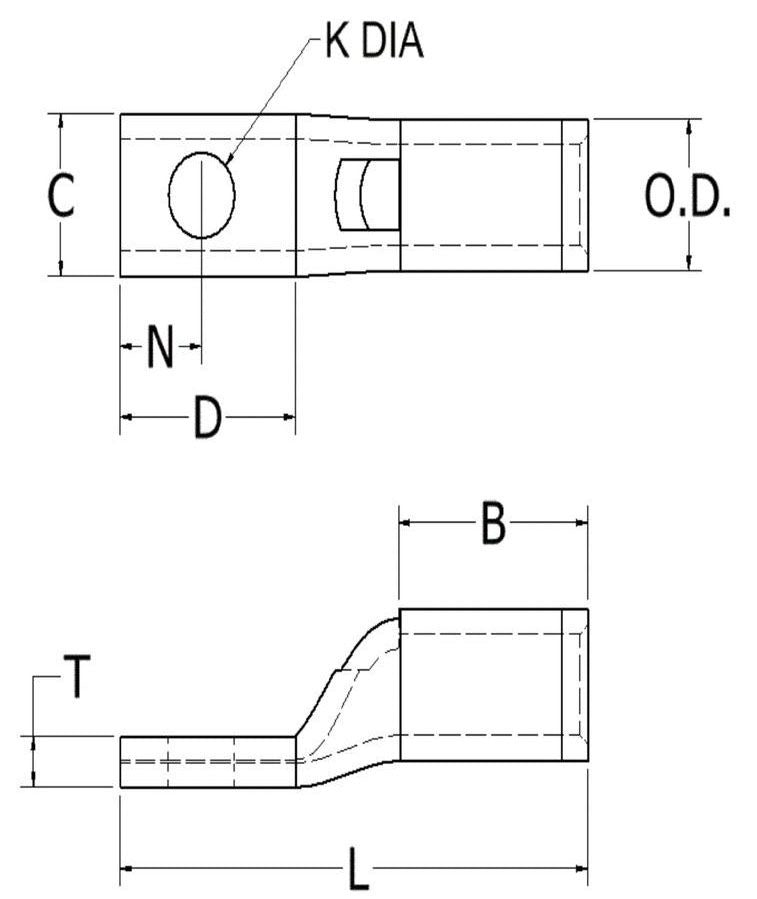

Barrel Length: 0.44 Inch
Pad Size: 0.33 Inch W x 0.09 Inch Thk
Number of Pad Holes: 1
Stud Size: #8
Color: Red
Die Index: 49
Material: Electro-Tin Plated Copper
Overall Length: 1.18 Inch
Approval: UL, CSA
