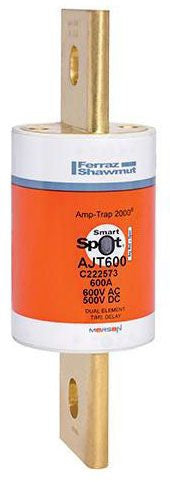

Mersen EP AJT600 Low Voltage UL Power Fuse

Out of stock
SKU: 27777
Regular price $591.18

Amp-Trap 2000 AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder and branch circuits, for all types of loads - yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT's time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.


Type: Class J
Characteristics: Time Delay
Voltage Rating: 600 Volt AC, 500 Volt DC
Current Rating: 600 Amp
Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
Terminal Type: Blade
Diameter: 2-1/2 Inch
Length: 8 Inch
Approval: UL 248/248-8, CSA C22.2
