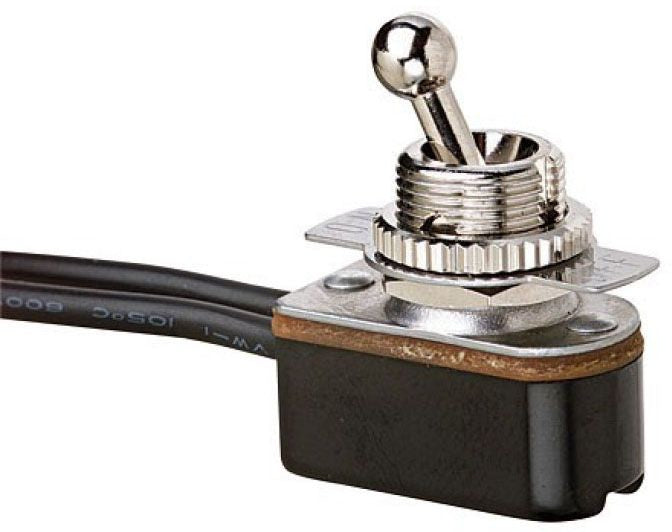

IDEAL Electrical 774002 Toggle Switch
Regular price
$5.51
Couldn't load pickup availability
Rugged Long-Wearing Solid Brass/Nickel-Plated Bushings; Mechanical Life 100,000 Cycles
Specifications:
Type: Short Ball Toggle, Medium, Light Duty
Voltage Rating: 125/250 Volt AC
Current Rating: 6 Amp at 125 Volt AC, 3 Amp at 250 Volt AC
Operation Type: Maintained On/Maintained Off
Contact Configuration: SPST
Toggle Material: Nickel Plated Brass
Mounting: Bushing
Terminal Type: 18 AWG Wire Lead
Size: 0.89 Inch Length x 0.47 Inch Width x 0.55 Inch Height
Application: Power Tool, Motor Control Switch Appliances
Approval: UL (Canada and US), CSA
