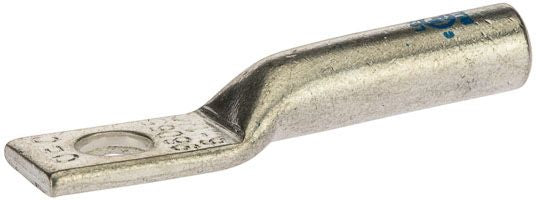

NSi Industries L614 Compression Cable Lug

In stock - 50 items available
SKU: 279189
Regular price $4.15
OR

Produced from High Conductivity Copper Tubing; Tin Plated to Provide Corrosion Low Contact Resistance; Marked with Die Index and Color Coded; Listed for 35 Kilovolt Maximum when Properly Installed and to Cable Manufacturer Instructions; For Applications Greater than 2000 Volt, Consult the Cable Manufacturer for Voltage Stress Relief Instructions

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 6 AWG
Barrel Type: Long
Barrel Length: 0.98 Inch
Pad Size: 0.67 Inch Length x 0.42 Inch Width x 0.08 Inch Thickness
Number of Pad Holes: 1
Stud Size: 1/4 Inch
Color: Blue
Die Index: 2/7/374/24
Material: Tin Plated Copper
Overall Length: 1.77 Inch
Approval: UL 486A/B, 467, UL (Canada and US)
