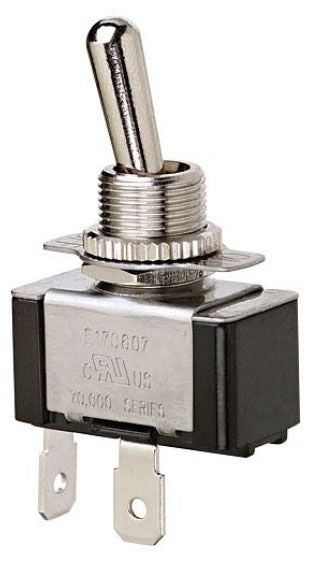

IDEAL Electrical 774008 Toggle Switch
Regular price
$4.11
Couldn't load pickup availability
Great for Power Tool and Motor Control Switch Applications; Rugged Long-Wearing Solid Brass/Nickel-Plated Bushings; 1/2 Inch Diameter Mounting Hole; 100000 Cycle Mechanical Life
Specifications:
Type: Bat Handle
Voltage Rating: 125/227 Volt AC
Current Rating: 20 Amp at 125 Volt AC, 10 Amp at 227 Volt AC
Operation Type: Maintained On/Maintained Off
Contact Configuration: SPST
Toggle Material: Nickel Plated Brass
Mounting: Bushing
Terminal Type: 1/4 Inch Spade
Size: 1.13 Inch Length x 0.57 Inch Width x 0.61 Inch Height
Application: Power Tool, Motor Control Switch
Approval: UL, CSA
