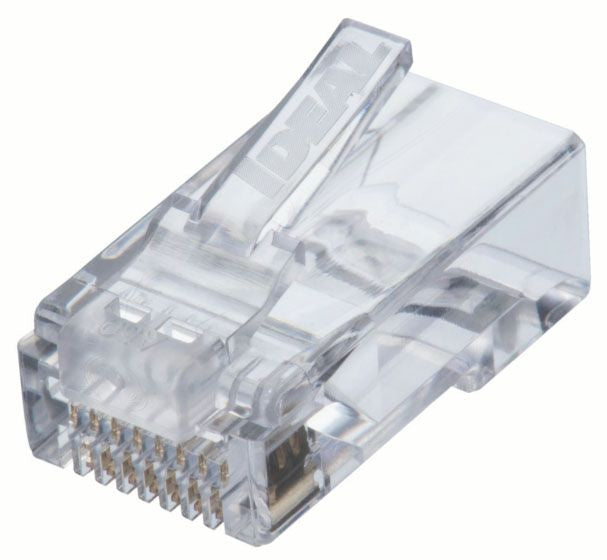

IDEAL Electrical 85-376 Modular Plug

The Ideal Feed-Thru Cat6 8P8C (Eight Position/Eight Contact) Modular Plug Connector Is The First Feed-Thru Style Connector And Tool Solution To Offer A Flush Cut Of The Excess Conductor To The Face Of The Modular Plug. A Patent Pending Design Enables Conductors To Be Cut Flush With The End Face Of The Connector When Used With The Ft-45 Tool (30-495). The Flush Cut Eliminates Inadvertent Contact Among Adjacent Conductors Or With The Mating Jack. Conductor Spacing Is Maintained For Reliable Performance In Poe And Data Applications.

Specifications:

Type: RJ45 Category 6
Number of Positions: 8
Number of Pins: 8
Cable Type: Twisted Pair
Conductor Size: 24 to 23 AWG (Solid/Stranded)
Conductor Insulation Outer Diameter: 0.041 Inch
Configuration: Standard, Feed-Through
Contact Material: Gold Plated
Standard Package: 50 per Card
