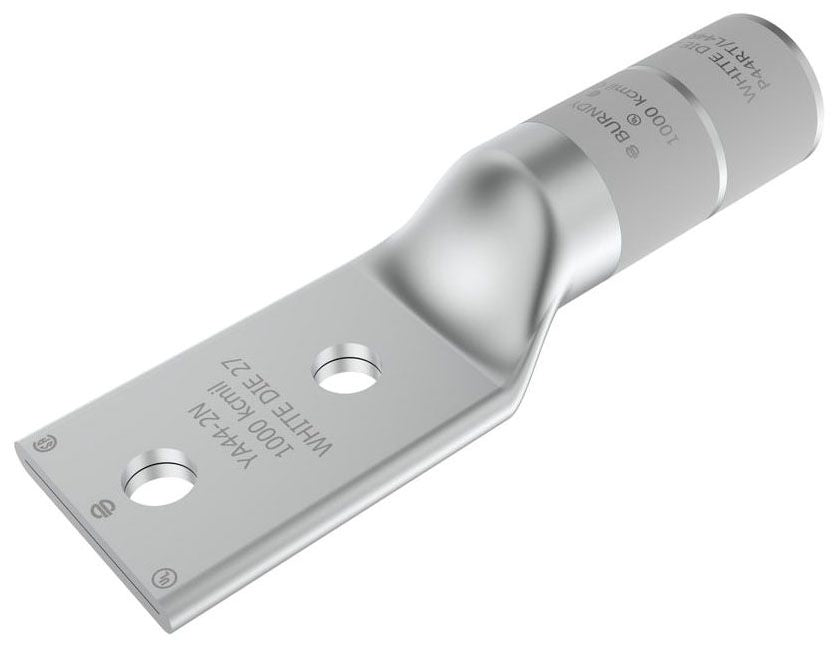

Burndy YA442N Compression Cable Lug

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 1000 KCMIL Stranded (Code)
Barrel Type: Long, Straight
Barrel Length: 3 Inch
Pad Size: 2.19 Inch Width x 0.32 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: White
Die Index: 27
Material: Electro Tin Plated Copper
Overall Length: 7.14 Inch
Approval: UL, CSA
