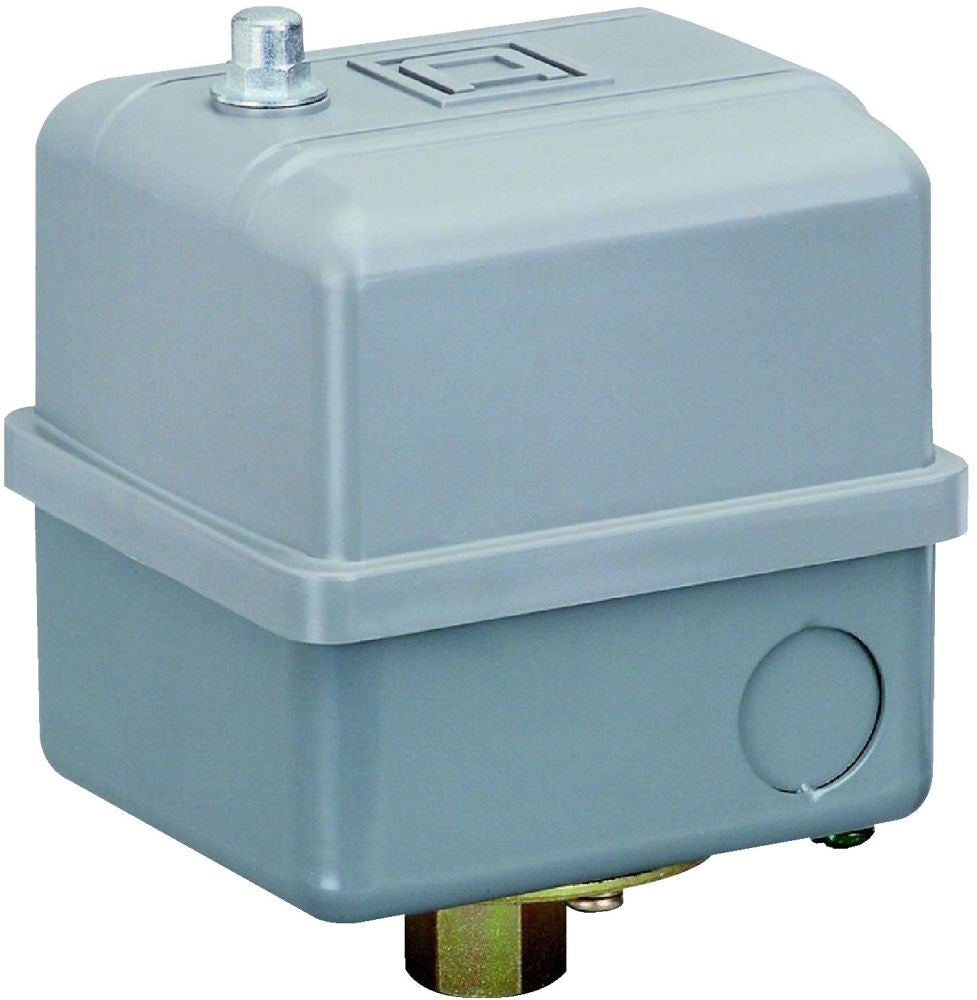

Class 9013 Type G Pumptrol Pressure Switches are Designed to Control Electrically Driven Water Pumps and Air Compressors; These Devices Cover Higher Electrical Ratings for Directly Controlling Motors in Pump and Compressor Applications; Contacts Open on Pressure Rise; Diaphragm Actuated; RoHS/REACH Compliant; Mercury-Free

Specifications:

Type: Adjustable Differential
Operator Type: Diaphragm
Operating Pressure Rating: 5 to 60 PSIG (Cut In), 20 to 80 PSIG (Cut Out)
Differential Pressure Rating: 15 to 30 PSIG
Pressure Media: Air/Water
Contact Configuration: DPST
Connection Type: 3/8 Inch FNPS Internal Thread
Enclosure: NEMA 1, IP20
Enclosure Material: Polypropylene
Application: Air Compressor, Water Pump
Approval: UL 508, CSA, CE
