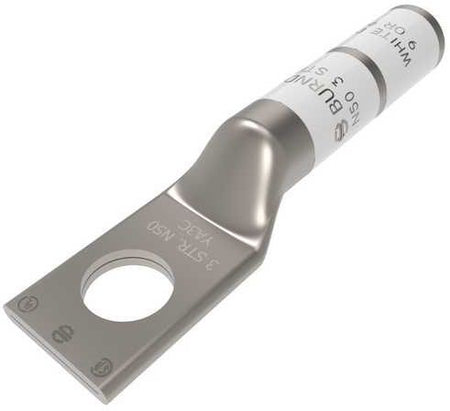

Burndy YA3CTC14 Compression Terminal

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 2 AWG Solid, 3 AWG Stranded (Code)
Barrel Type: Long, Standard, Straight
Barrel Length: 1.25 Inch
Pad Size: 0.55 Inch W x 0.09 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/4 Inch
Color: White
Die Index: 9
Material: Electro-Tin Plated Copper
Overall Length: 2.23 Inch
Approval: UL 467, CSA
