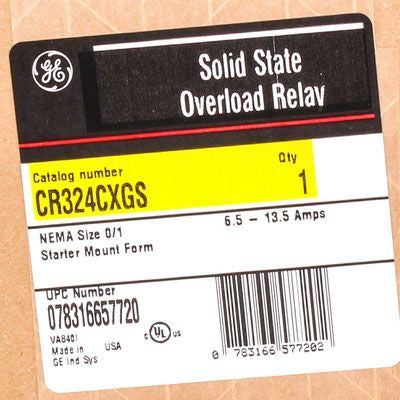

ABB GE Industrial Solutions CR324CXGS Overload Relay
Regular price
$317.97
Couldn't load pickup availability
2:1 Adjustable Full Load Ampere with Tactile Feedback Dial; Built-In Thermal Memory to Prevent Hot Motor Restarts; Protection Against Complete Phase Current Loss; 2% Accuracy; 2% Repeatability; Self-Powered 50% of Minimum Current Range; Unbalance Trip Signal for PLC Operation; Manual Trip; Visual Trip Indication; Built-In Line/Load Straps; Power Factor Correction Terminals
Specifications:
Type: Magnetic, Solid State
Motor FLA: 6.5 to 13.5 Ampere
Number of Poles: 3
Trip Class: Class 10/20/30
NEMA Size: 1
Reset Type: Manual/Remote
Auxiliary Contact: 1NO-1NC
Contact Rating: 600 VAC 27 Ampere
Mounting: DIN Rail/Panel
