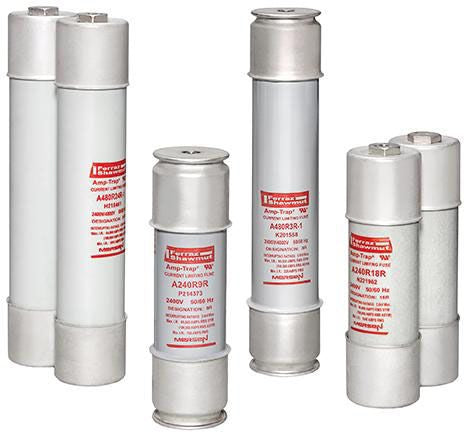

Mersen EP A480R5R-1 Motor Protection Fuse
Couldn't load pickup availability
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips.
Specifications:
Type: R Rated
Voltage Rating: 4.8 Kilovolt AC
Current Rating: 150 Amp
Interrupting Rating: 65 Kiloamp at 5.5 Kilovolt (AC)
Number of Barrels: 1
Terminal Type: Ferrule
Designated Size: 5R
Diameter: 3 Inch
Length: 15.87 Inch
Approval: UL
