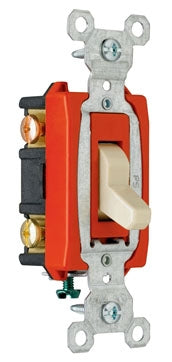

Like our other commercial switches, these reliable performers feature high-strength polycarbonate toggles, single-piece brass alloy contact arms, nylon covers and heavy gauge steel straps to withstand hard use and ensure a long service life. Fast make and positive break action minimizes arcing.

Specifications:

Type: Toggle
Current Rating: 20 Amp
Voltage Rating: 120/277 Volt AC
Power Rating: 1 HP at 120 Volt AC, 2 HP at 240 Volt AC
Operation Type: 3-Way
Material: Glass Reinforced Nylon (Back Body), Nylon (Front Body), Thermoplastic Polycarbonate (Toggle)
Color: Gray
Wiring: Side

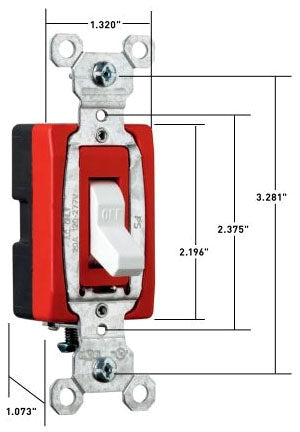

Size: 1.32 Inch Width x 1.073 Inch Depth x 3.281 Inch Height
Wall Plate Included: No
Application: Commercial, Specification Grade
Approval: UL 20, CSA C22.2
