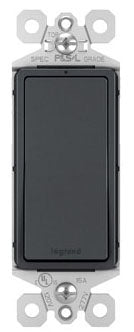

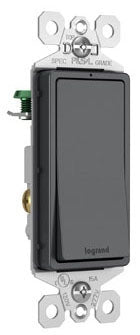

Radiant Collection TM870GCC10 Paddle Switch
Couldn't load pickup availability
Now Part of the Radiant Collection, Our Paddle Switches Offer a Better Fit, Form and Finish; The Smooth Paddle Action Combines with Subtle Aesthetic Improvements to Deliver Reliable Performance; Easy Access Green Hex Head Ground Screw; Extra Long, Through Body Strap Eliminates Floating Installations and Imperfect Applications; High Impact Resistant Thermoplastic Construction; RoHS Compliant
Specifications:
Type: Illuminated Rocker
Voltage Rating: 120/277 Volt AC
Current Rating: 15 Amp
Operation Type: 1-Pole
Wiring: Back/Side/Push
Wall Plate Included: No
Material: Thermoplastic (Face/Back Body)
Color: Graphite
Size: 1.43 Inch Width x 1.27 Inch Depth x 4.19 Inch Height
Application: Office, Residential, Multiple Dwelling, Hospitality/Lodging
Approval: UL (Canada and US), UL 20, CSA C22.2
