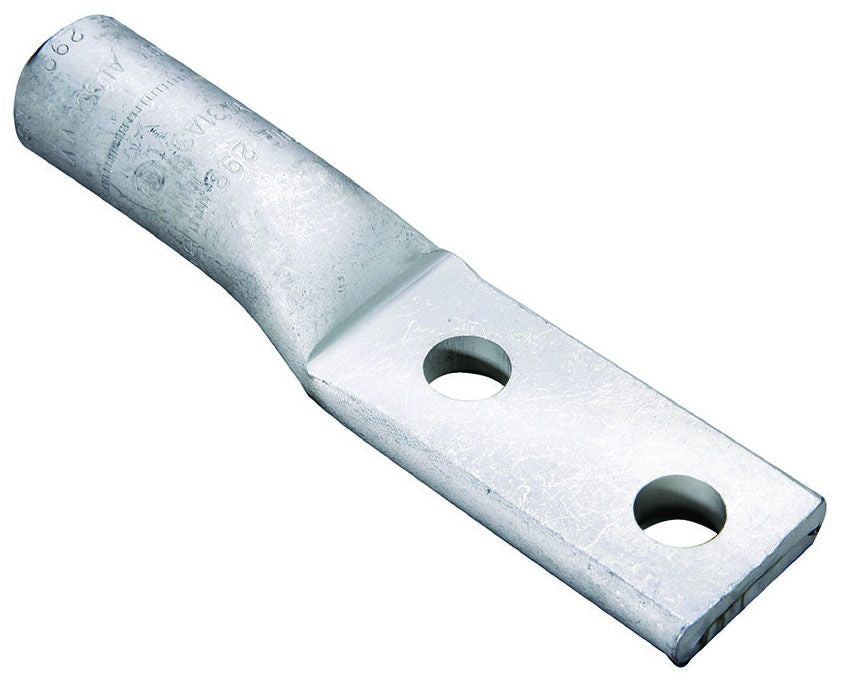

Burndy YA28A7 Compression Cable Lug

Type YA-A terminals in 2- and 4-hole designs inhibit connector rotation and increase area contact. These aluminum terminals have the same design features and benefits as the 1-hole YA-A with an added stud hole for a more secure termination to various types of equipment pads. They are dual-rated for use on both aluminum and copper conductors.

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 4/0 AWG (Aluminum), 4/0 AWG Solid/Stranded (Copper)
Barrel Type: Standard, Straight
Barrel Length: 1.39 Inch
Pad Size: 1.17 Inch W x 0.3 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: White
Die Index: 298
Material: Electro-Tin Plated Aluminum
Overall Length: 3.97 Inch
Approval: UL 468A/468B, CSA
