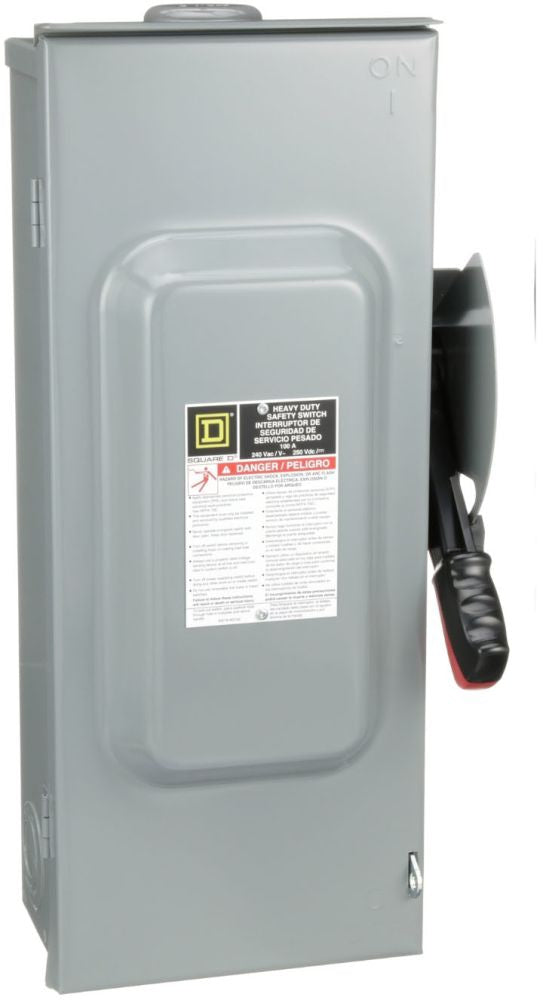

Visible Blade Heavy Duty Safety Switches are Designed for Application where Maximum Performance and Continuity of Service are Required; All Heavy Duty Safety Switches Feature Quick-Make, Quick-Break Operating Mechanism, a Dual Cover Interlock and a Color Coded Indicator Handle; They are Suitable for Use as Service Equipment when Equipped with a Field or Factory-Installed Neutral Assembly or Equipment Grounding Kit; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product; Made in USA

Specifications:

Type: Heavy Duty
AC Voltage Rating: 240 V
DC Voltage Rating: 250 V
Current Rating: 30 Ampere
Power Rating: 1-1/2 HP at 120 VAC 1-Phase (Standard), 2 HP at 120 VAC 1-Phase (Maximum), 1-1/2 HP at 240 VAC 1-Phase (Standard), 3 HP at 240 VAC 3-Phase (Standard), 3 HP at 240 VAC 1-Phase (Maximum), 7-1/2 HP at 240 VAC 3-Phase, 3 HP at 125 VDC, 5 HP at 250 VDC
Number of Poles: 2
Number of Wires: 3
Fuse Provision: Fusible
Fuse Type: Class R
Neutral Type: Solid
Enclosure: NEMA 3R
Size: 7.55 Inch W x 4.88 Inch D x 14.88 Inch H
Enclosure Material: Steel
Finish: Galvannealed
Approval: UL
