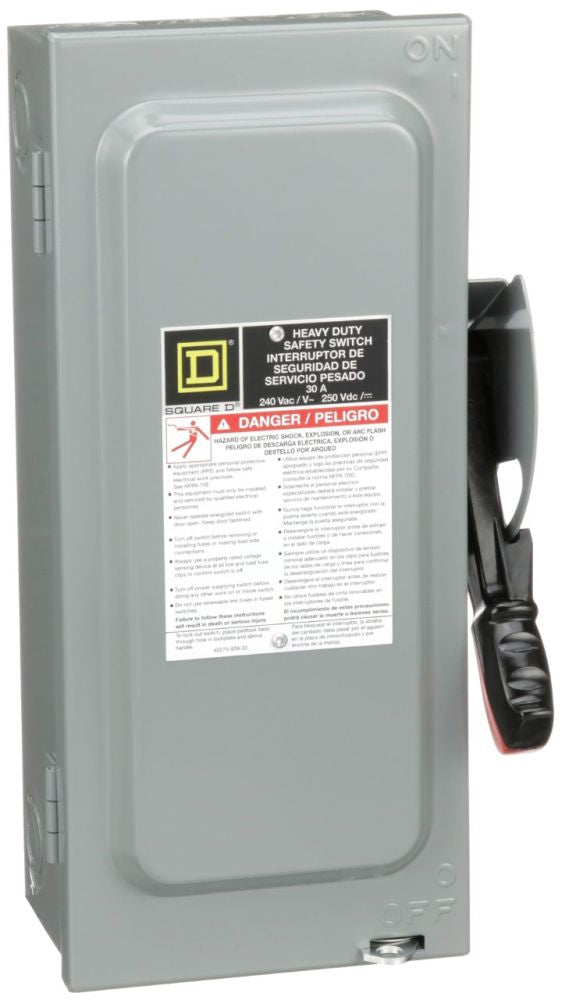

Visible Blade Heavy Duty Safety Switches are Designed for Application where Maximum Performance and Continuity of Service are Required; All Heavy Duty Safety Switches Feature Quick-Make, Quick-Break Operating Mechanism, a Dual Cover Interlock and a Color Coded Indicator Handle; They are Suitable for Use as Service Equipment when Equipped with a Field or Factory-Installed Neutral Assembly or Equipment Grounding Kit; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product; Made in USA

Specifications:

Type: Heavy Duty
AC Voltage Rating: 240 Volt
DC Voltage Rating: 250 Volt
Current Rating: 30 Amp
Power Rating: 1-1/2 HP at 240 Volt AC 1-Phase, 3 HP at 240 Volt AC 3-Phase (Standard Fuse), 3 HP at 240 Volt AC 1-Phase, 7-1/2 HP at 240 Volt AC 3-Phase (Time Delay Fuse), 5 HP at 250 Volt DC
Number of Poles: 3
Number of Wires: 4
Fuse Provision: Fusible
Fuse Type: Class H/K/R/J/L
Enclosure: NEMA 1

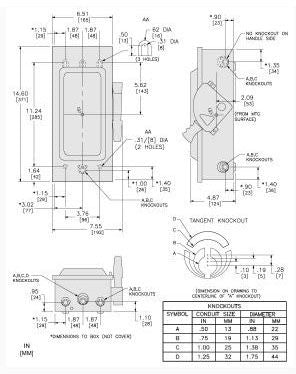

Size: 6.5 Inch Width x 4.88 Inch Depth x 14.6 Inch Height
Enclosure Material: Steel
Approval: UL
