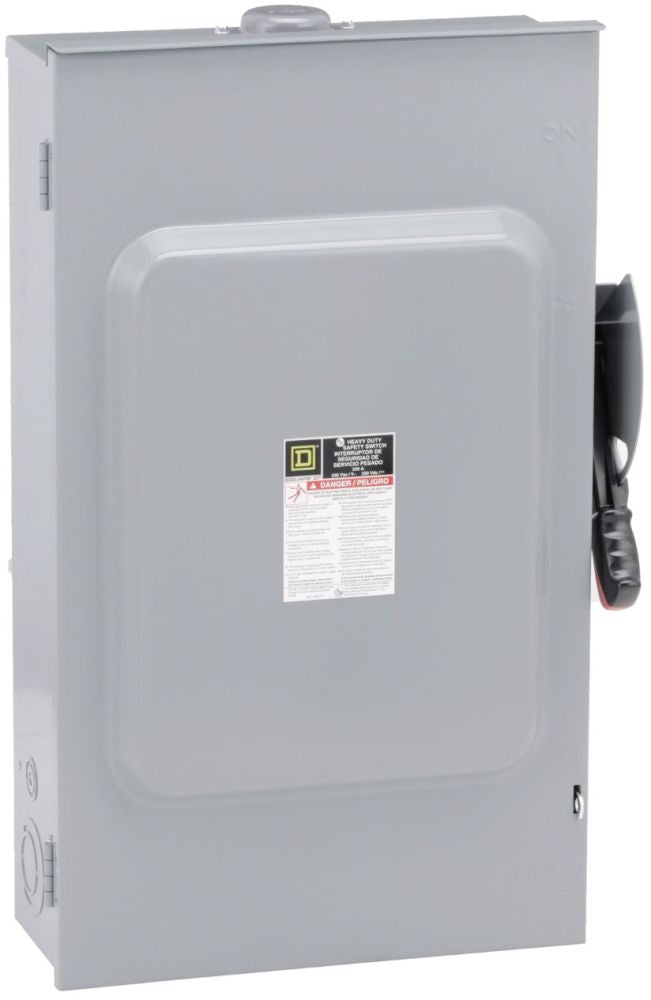

Visible Blade Heavy Duty Safety Switches are Designed for Application where Maximum Performance and Continuity of Service are Required; All Heavy Duty Safety Switches Feature Quick-Make, Quick-Break Operating Mechanism, a Dual Cover Interlock and a Color Coded Indicator Handle; They are Suitable for Use as Service Equipment when Equipped with a Field or Factory-Installed Neutral Assembly or Equipment Grounding Kit; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Toxic Heavy Metal Free; Green Premium Product; Made in USA

Specifications:

Type: Heavy Duty Safety
AC Voltage Rating: 240 V
DC Voltage Rating: 250 V
Current Rating: 200 Ampere
Power Rating: 25 HP at 240 VAC 3-Phase (Standard), 60 HP at 240 VAC 3-Phase (Maximum), 40 HP at 250 VDC
Number of Poles: 3
Number of Wires: 4
Fuse Provision: Fusible
Fuse Type: Class R
Neutral Type: Solid
Enclosure: NEMA 3R
Size: 18.63 Inch W x 8.5 Inch D x 29.25 Inch H
Enclosure Material: Steel
Finish: Galvannealed
Approval: UL
