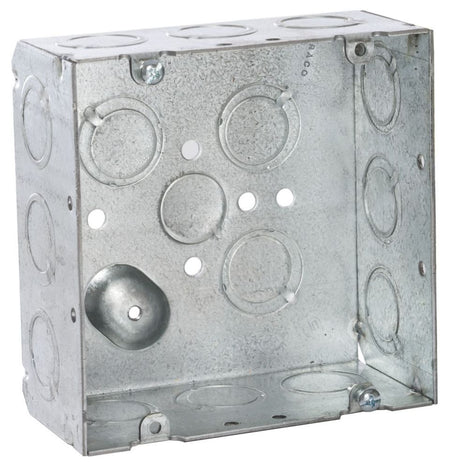

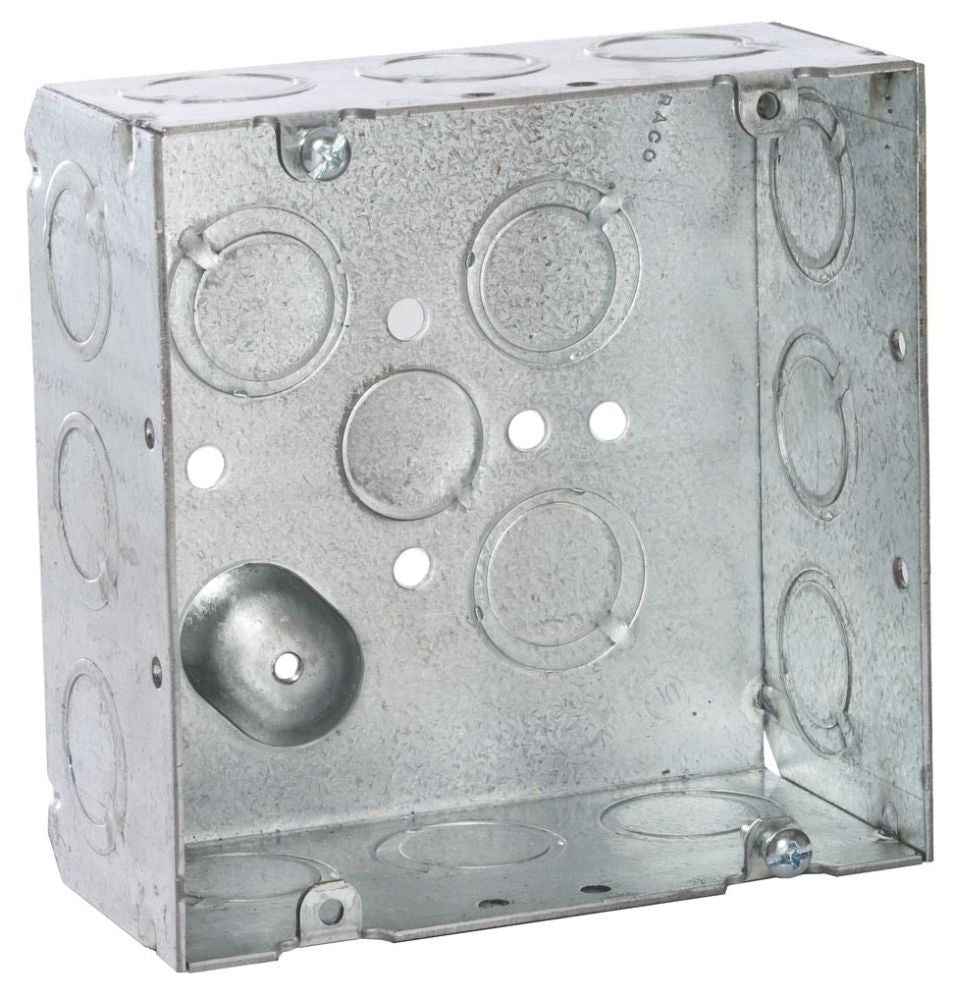

RACO 257 Electrical Square Outlet Box
Couldn't load pickup availability
4-11/16 Inch Boxes are Used for a Wide Variety of Industrial Applications where Larger Sized Conductors or Wiring Devices are Needed and More Volume is Required; Combination Screw Heads Provide for Faster Installation; TKO Knockouts Allow for Design and Installation Flexibility; Suitable for Use without a Bonding Jumper in Circuits up to 600 Volt
Specifications:
Type: Welded, Raised Ground
Height: 4-11/16 Inch
Width: 4-11/16 Inch
Depth: 2-1/8 Inch
Capacity: 42 Cubic Inch
Number of Knockouts: 16
Knockout Location: (4) Bottom, (12) Sides
Knockout Size: (1) 1/2 Inch Conduit Bottom, (1) Conduit Bottom, (3) (1/2 to 3/4 Inch) Conduit Threaded Knockout Bottom, (12) (1/2 to 3/4 Inch) Conduit Threaded Knockout Sides
Material: 0.625 Inch Pre-Galvanized Steel
Standard Package: 25
Approval: UL 514A
