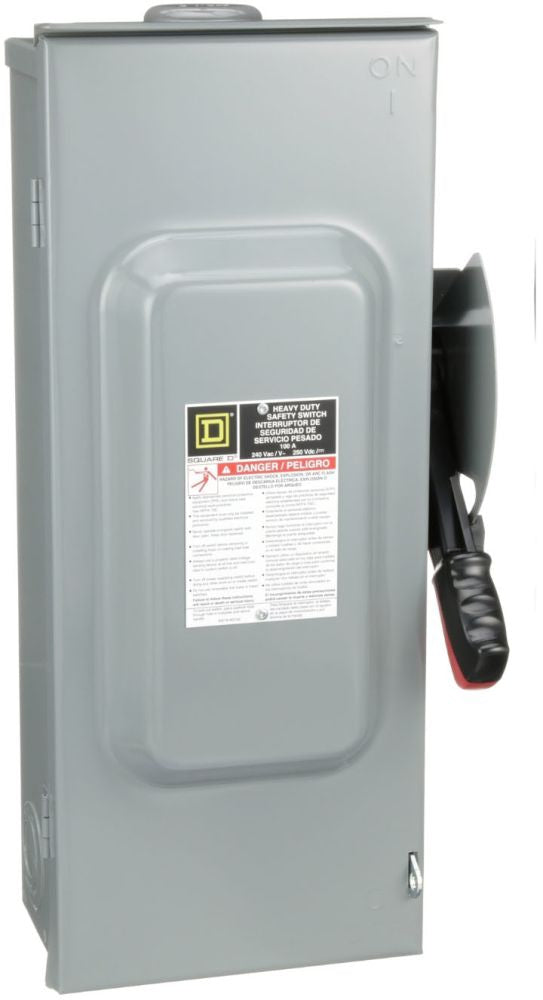

Visible Blade Heavy Duty Safety Switches are Designed for Application where Maximum Performance and Continuity of Service are Required; All Heavy Duty Safety Switches Feature Quick-Make, Quick-Break Operating Mechanism, a Dual Cover Interlock and a Color Coded Indicator Handle; They are Suitable for Use as Service Equipment when Equipped with a Field or Factory-Installed Neutral Assembly or Equipment Grounding Kit; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product; Made in USA

Specifications:

Type: Heavy Duty Safety
AC Voltage Rating: 600 Volt
DC Voltage Rating: 600 Volt
Current Rating: 100 Amp
Power Rating: 25 HP at 480 Volt AC 3-Phase (Standard), 60 HP at 480 Volt AC 3-Phase, 30 HP at 600 Volt AC 3-Phase (Standard), 75 HP at 600 Volt 3-Phase, 50 HP at 600 Volt DC
Number of Poles: 3
Number of Wires: 4
Fuse Provision: Fusible
Fuse Type: Class R/J/L/H/K
Neutral Type: Solid
Enclosure: NEMA 3R
Size: 10.5 Inch Width x 6.38 Inch Depth x 21.25 Inch Height
Enclosure Material: Steel
Finish: Galvannealed
Approval: UL
