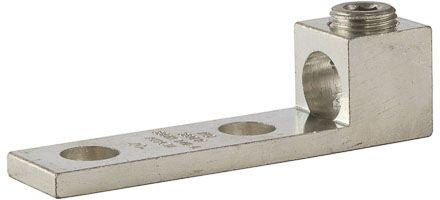

Panelboard Style for Multi-Conductor with NEMA Mounting Hole Spacing for Turn Prevent and Secureness; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors

Specifications:

Number of Conductors: 1
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 350 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 5/16 Inch Hex Socket
Material: Aluminum
Number of Pad Holes: 2
Pad Size: 3.09 Inch L x 0.99 Inch W x 0.31 Inch Thk
Stud Size: 0.56 Inch
Overall Length: 4.31 Inch
Approval: UL (Canada and US)
