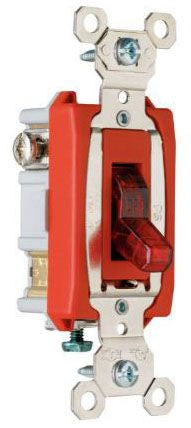

Pass & Seymour PS20AC1RPL Pilot Lighted Switch

  • Sale
  • Regular price $40.34
Shipping calculated at checkout.


Heavy Gauge One-Piece Copper Alloy Contact Arm Virtually Eliminates Contact Bounce; Cam Controls Fast Make and Positive Break to Minimize Arcing; Heavy Duty Bumper Pads for Quiet Operation; High Strength Thermoplastic Polycarbonate Toggle; Locking Support Provides Resistance to Face and Back Body Separation; Oversized Silver Alloy Contacts for Long Life and Better Heat Dissipation; Grounding Terminal is Standard; Shallow Design for Ease of Installation; Strap Nickel-Plated Steel with Integral Ground; RoHS Compliant

Specifications:

Type: Toggle, Extra Heavy Duty
Voltage Rating: 120 Volt AC
Current Rating: 20 Amp
Operation Type: 1-Pole
Wiring: Back, Side
Wall Plate Included: No
Material: Glass Reinforced Nylon (Back Body), Nylon (Face), Thermoplastic Polycarbonate (Toggle)
Color: Red
Size: 1.32 Inch Width x 1.073 Inch Depth x 3.281 Inch Height
Application: Industrial, Specification Grade
Approval: UL 20, CSA C22.2
