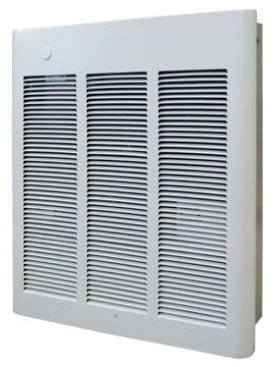

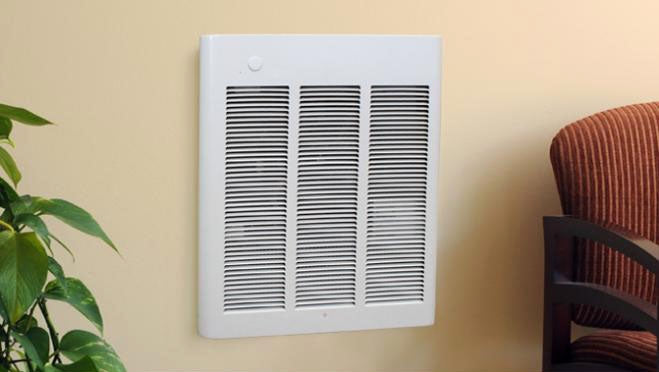

QMark FRA3027F Fan Forced Wall Heater

Contemporary Design Combined with Commercial-Grade Steel Grill to Provide Comfort Through Optimized Airflow; Built-In Power On/Off Switch for Added Safety During Maintenance; Manual Reset Thermal Overheat Protector Disconnects Power in the Event of Accidental Blockage; Automatic Fan Delay Eliminates Cold Drafts on Start-Up and Discharges Residual Heat from the Heater Body During Shut Down; Integral Double-Pole Thermostat Allows for Easy Adjustment to Maintain Desired Temperature; All Units have a Permanently Lubricated Enclosed Fan Motor, which Creates Long Life, Low Maintenance and Gently Distributes Warmth Throughout the Area

Specifications:

Voltage Rating: 277 Volt
Current Rating: 10.8/5.4 Amp
Power Rating: 3000/1500 Watt
Number of Phases: 1
Heating Capacity: 10236/5118 BTU/Hour
Housing Size: 15-3/4 Inch Width x 7/8 Inch Depth x 19-5/16 Inch Height (Grill), 14-5/16 Inch Width x 3-3/4 Inch Depth x 18-1/4 Inch Height (Back Box)
Material: Heavy Gauge Galvanized Steel
Finish: Powder Paint
Color: Northern White
Heating Element: 80/20 Gauge Nickel Chromium Resistance Wire Enclosed in Steel Sheath, Brazed Copper Fin
Control Type: 1-Pole Thermostat, Fan Delay Switch, Thermal Cutout
Fan/Motor Type: Lubricated Motor
Air Flow Rate: 100 CFM
Mounting: Wall
Application: Mechanical Room, Vestibule, Hallway, Stairwell, Medical Office, Basement, Restaurant, Conference Room, Lobby, Entrance Way, Family Room
Approval: ETL (Canada and US)
