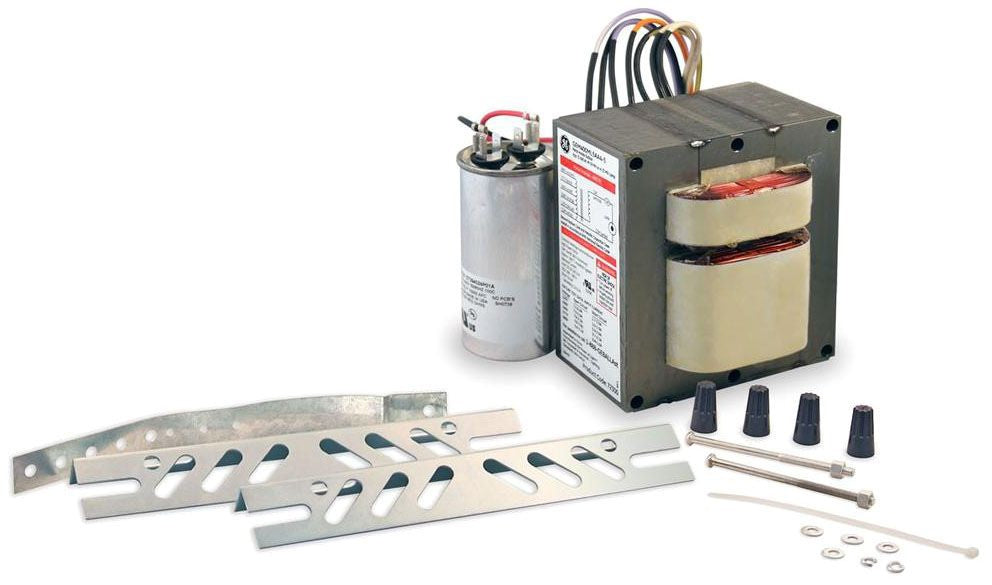

GE Current 86741 Open Core and Coil HID Ballast
Couldn't load pickup availability
Magnetic Ballast Construction Ideal for a Wide Variety of Lighting Applications; Precision-Wound Coils, Ensuring Even Heat Dissipation and the Highest Electrical Integrity; Distributor Replacement Kit Contains the Appropriate Core and Coil with Color Coded Leads a Properly Rated Capacitor and Igniter (If Required) and All Other Components Required for Ballast Replacement; Quad Ballast (120, 208, 240, 277)
Specifications:
Contents: Core and Coil Ballast, Capacitor, Ignitor, Color Coded Lead
Input Voltage: 120/208/240/277 V
Input Current: 0.7/0.8/0.9/1/1.7/1.8 Ampere
Input Power: 186/187/188/210 W
Frequency Rating: 60 Hz
Lamp Type: Metal Halide
Lamp Wattage: 175 W
Circuit Type: Constant Wattage Autotransformer
ANSI Code: H39/M57/M107
Minimum Starting Temperature: -22 Deg F
Size: 4 Inch L x 2.8 Inch W
Approval: UL, CUL
