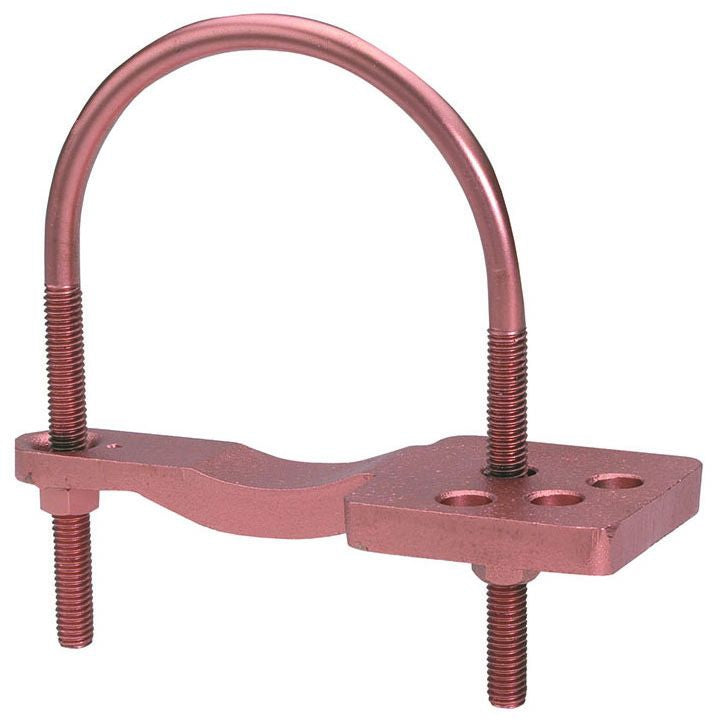

Burndy GAR3906TC Mechanical Grounding Connector

1-Wrench Installation; With Pre-Drilled Mounting Pad, Allowing a 2-Hole Compression Terminal to be Directly Connected to Water Pipe as Well as Structural and Reinforcing Rod Shapes; Universal Acceptance of Several Sizes of Cylindrical Shapes Makes this Suitable for Industrial Construction and Maintenance Work as Well as Telecommunications Grounding; Terminal May be Mounted Parallel, 45 Degree or 90 Degrees to the Pipe; Acceptable for Direct Burial; Large, Smooth Connector Contact Area Between Pipe and Ground Clamp; Provides Maximum Flexibility for Field Installation; RoHS Compliant

Specifications:

Conductor Size: 750 KCMIL
IPS Size: 6 Inch
Rod Size: 6.62 Inch

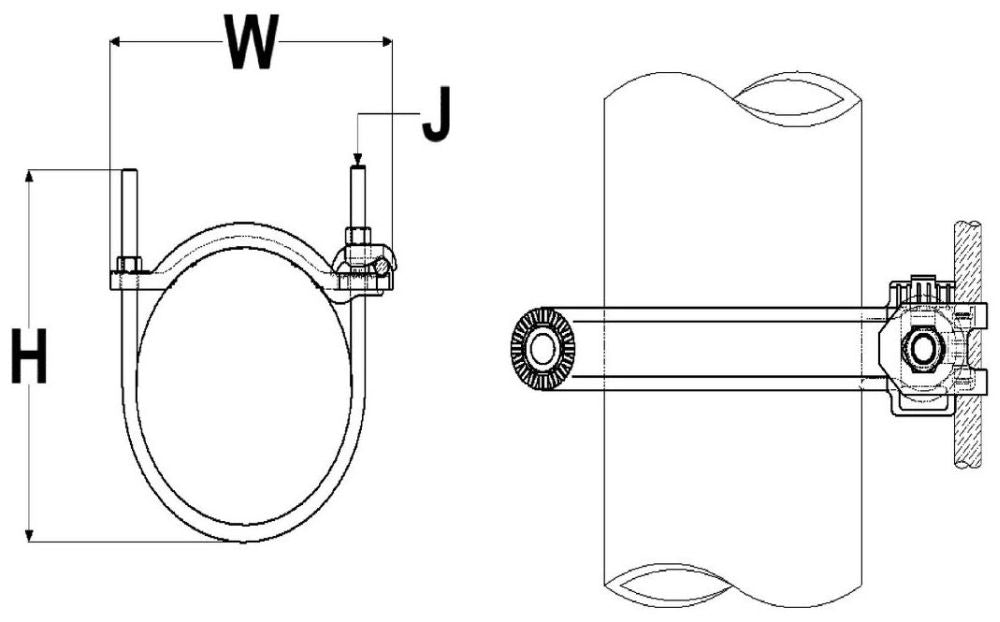

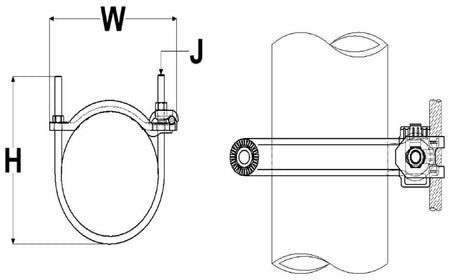

Size: 9.12 Inch W x 8.5 Inch H
Installation: U-Bolt to Pipe/Rod
Material: Cast High Copper Alloy Body/Saddle, Durium Silicon Bronze Hardware
Approval: UL 467, CSA
Used On: Parallel/45/90 Degree Cable to Water Pipe/Rod, Direct Burial
