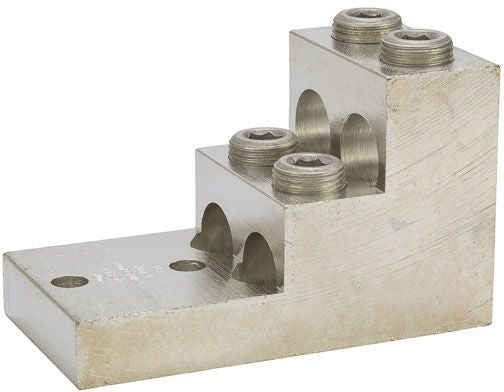

NSi Industries 600T-4 Mechanical Connector Panel Lug
Regular price
$108.10
Couldn't load pickup availability
Large Size Set Screw Connectors with Wire Holes Stacked on Top of Each Other to Minimize the Width of the Connector; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors
Specifications:
Type: Set Screw
Number of Conductors: 4
Minimum Conductor Size: 2 AWG
Maximum Conductor Size: 600 KCMIL
Conductor Material: Aluminum/Copper
Screw Type: 3/8 Inch Hex
Material: Electro-Tin Plated 6061T-6 Aluminum Alloy
Pad Size: 2.34 Inch Length x 2.5 Inch Width x 0.75 Inch Thick
Stud Size: 3/8 Inch
Overall Length: 4.91 Inch
Approval: UL, UL 486A/B
