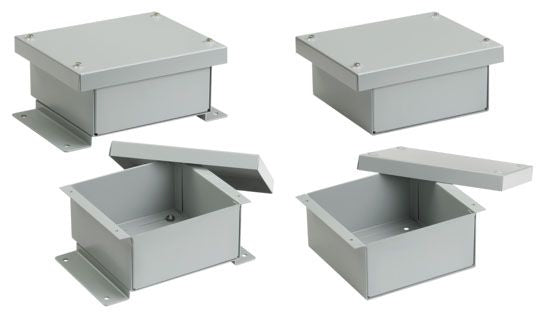

Hoffman Enclosures A8R84HM Screw Cover Enclosure

The Screw Cover is the Drip Shield Providing 3/4 Inch Overhang on Each Side for Outdoor Protection; No Gasketing; Screw Locations on Cover are Embossed; Enclosure Body Flange is Formed Outward; Mounting Holes on Back for Direct Mounting Through the Back to Strut or Mounting Surface; Vertical Structure for Mounting Not Required; Included Mounting Brackets Provide a 1 Inch Clearance Off Surface for Protection against Pooling Water; RoHS/REACH Compliant

Specifications:

Type: Flanged
Height: 8 Inch
Width: 8 Inch
Depth: 4 Inch
Material: Steel
Material Specification: 16/12 Gauge
Finish: Galvanized, Polyester Powder Painted
Color: ANSI 61 Gray
Enclosure: NEMA 3R, IP32
Mounting: Horizontal
Cover Type: Screw-On
Approval: UL 50/50E, CUL, CSA C22.2
