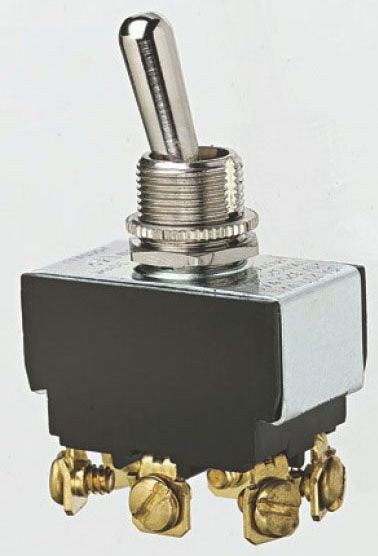

IDEAL Electrical 774015 Toggle Switch
Regular price
$21.45
Couldn't load pickup availability
Great for Power Tool and Motor Control Switch Applications - Rugged Long-Wearing Solid Brass/Nickel-Plated Bushings; 1/2 Inch Diameter Mounting Hole/Spade Terminals are 1/4 Inch, 1500 Volt Dielectric Strength, 100000 Cycles Mechanical Life
Specifications:
Type: Heavy Duty
Voltage Rating: 125/277 VAC
Current Rating: 20 Ampere at 125 VAC, 10 Ampere at 277 VAC
Operation Type: Maintained On/Maintained On
Contact Configuration: DPDT
Toggle Material: Nickel Plated Brass
Mounting: Bushing
Terminal Type: Screw
Size: 1.3 Inch L x 0.76 Inch W x 0.8 Inch H
Application: Power Tool, Motor Control Switch Appliances
Approval: UL, CSA
