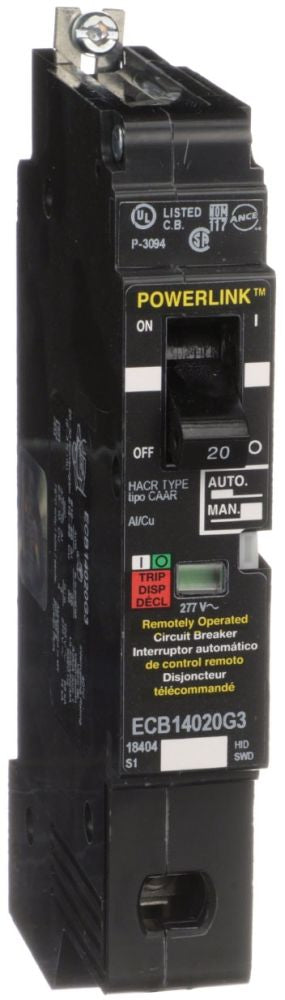

Powerlink G3 Remotely Operated Circuit Breakers are Designed for Installation in Schneider Electric NF Lighting Panelboard as Part of the Schneider Electric Powerlink G3 Lighting Control System; These Circuit Breakers Provide the Same Overcurrent Protection as Found in Standard Circuit Breakers; Schneider Electric Powerlink ECB-G3 Circuit Breakers have a Permanent Trip Unit that Contains a Factory Preset Thermal (Overload) Trip Element and a Magnetic (Short Circuit) Trip Element in Each Pole; The Thermal Trip Element True RMS Sensing and is Calibrated to Carry the Continuous Current Rating of the Circuit Breaker at 140 Deg F (40 Deg C) Free Air Ambient Temperature; RoHS/REACH Compliant; Mercury-Free

Specifications:

Type: Molded Case
Number of Poles: 1
Voltage Rating: 120/277 VAC
Current Rating: 30 Ampere
Interrupting Rating: 65 Kiloampere at 120 VAC, 14 Kiloampere at 277 VAC
Wire Size: 12 to 8 AWG (Aluminum), 10 to 8 AWG (Copper)
Mounting: Bolt-On
Used On: Powerlink Lighting Control System
Size: 0.75 Inch W x 2.97 Inch D x 3.5 Inch H
Approval: UL
