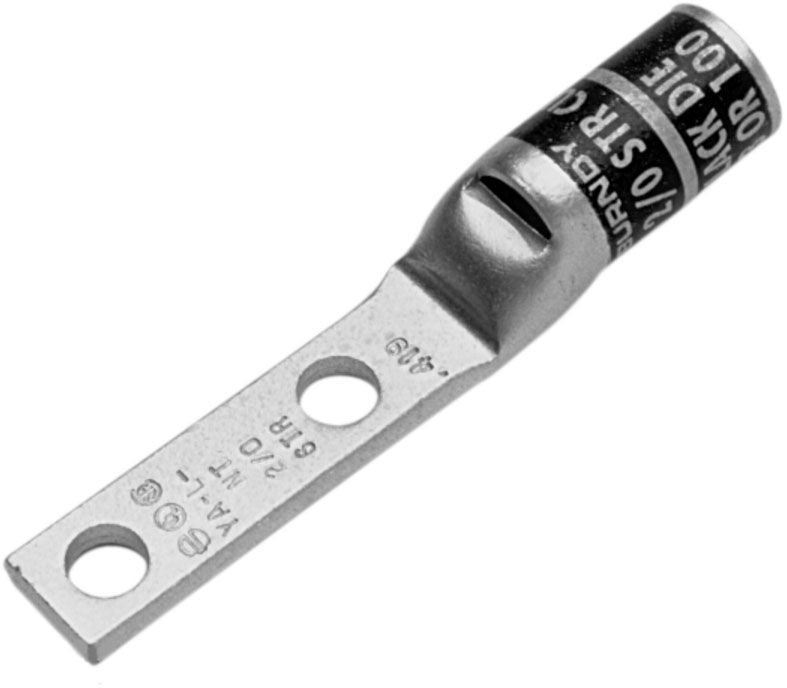

Burndy YAV2CL2NT14FX Compression Cable Lug

HYLUG Type YAV is a seamless, heavy duty uninsulated compression terminal manufactured from electrolytic copper and is for use on Type AN aircraft cable, extra flexible conductors and commercial (code) conductors. The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability.

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 125/24 to 150/24 Diesel Locomotive Cable, 2 AWG Class G/H/I (Weld Flex), 2 AWG Stranded
Barrel Type: Short, Standard, Straight

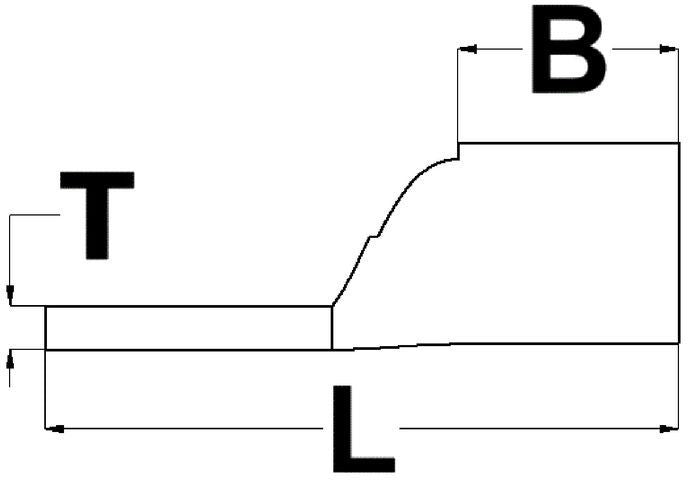

Barrel Length: 0.63 Inch
Pad Size: 0.48 Inch W x 0.1 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 5/8 Inch
Stud Size: 1/4 Inch
Color: Brown
Die Index: 10
Material: Electro-Tin Plated Copper
Overall Length: 2.26 Inch
Approval: UL, CSA
