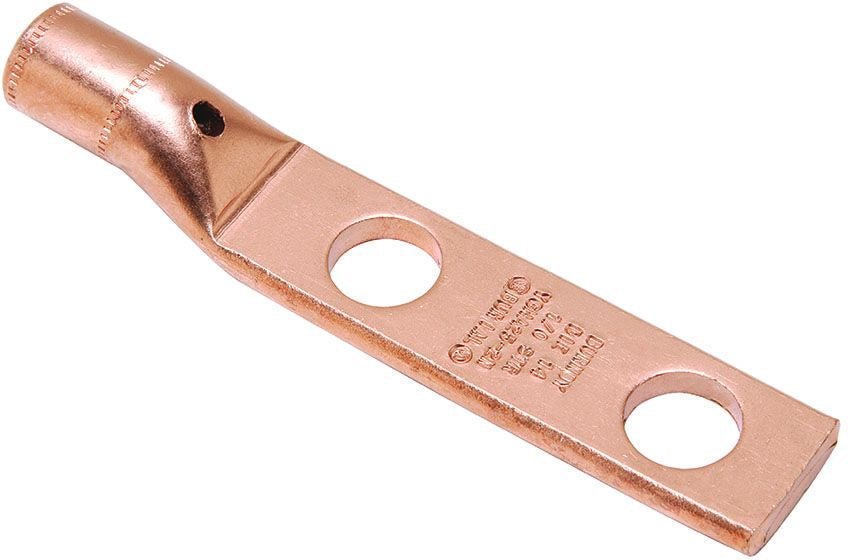

Burndy YGHA28-2N Grounding Compression Lug

Heavy duty HYLUG irreversible compression terminals designed not only to carry short circuit load, but to also withstand high mechanical stress. Each conductor element has an inspection probe hole to ensure proper cable insertion. UL467 Listed. Acceptable for direct burial in earth or concrete. UL486A Listed. Prefilled with  PENETROX compound and strip sealed.

Specifications:

Conductor Material: Copper
Conductor Size: 4/0 AWG Stranded
Barrel Type: Short, Straight
Barrel Length: 1.18 Inch
Pad Size: 3 Inch Length x 1.22 Inch Width x 0.3 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Die Index: 17
Material: Copper
Overall Length: 4.94 Inch
Approval: UL 467/468A, CSA
