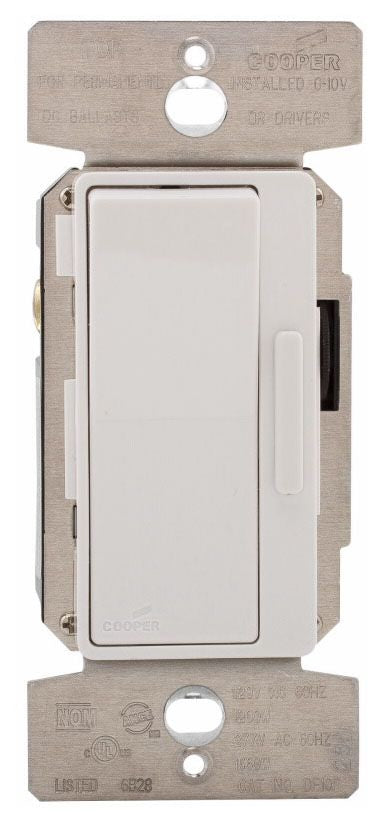

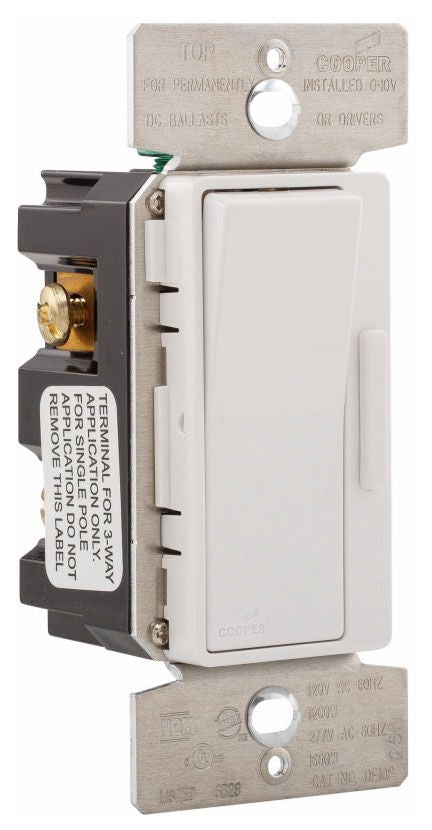

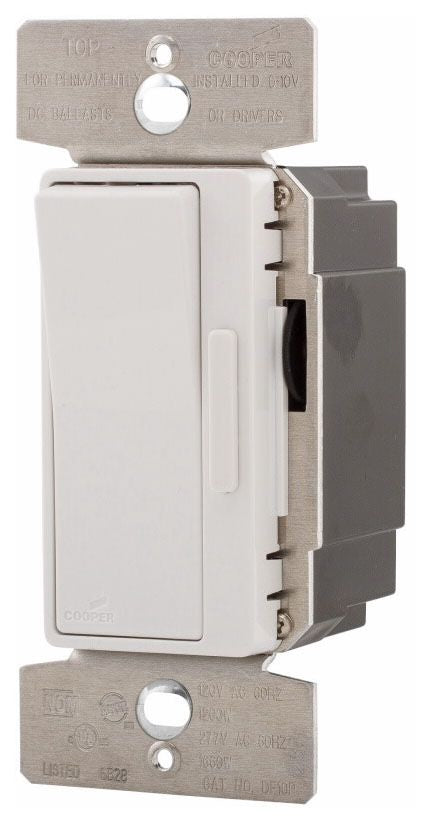

Arrow Hart DF10P-C2 Slide Dimmer

Preset Feature Allows User to Return to Previous Light Setting When Turning Lights on; Master/Accessory Units for Multi-Location Control; Amber Led at Bottom of LED Display Indicates On/Off Load Status; Seven Step Green LED Display Indicates Selected Light Level – and Reduces Brightness When Off; Pressing and Holding Push Pad for 2 Seconds When Dimmer is Off Brings Light to Full Brightness without Affecting Preset Levels; Offers a 10 Second Delayed-Off Feature by Pressing and Holding Push Pad for 2 Seconds when Dimmer is on; Aesthetically Pleasing Soft-On/Fade-Off that Extends Lamp Life; Neutral is Required for Installation of Device; Programmable Rapid Start Feature Ensures Lamp Start-Up Even at Low Dim Levels; Adjustable Low-Level Trim Setting for Optimal Lamp Compatability; Faceplate is Removable to Allow for Color Change; Air-Gap Switch Disconnects Power from Load, Forcing an Off Condition; Adjustable High-Level Trim Setting for Additional Energy Savings; Compatible with Most Common Dimmable Lighting Loads

Specifications:

Type: Wall Dimmer
Operator Type: Slide Switch with Preset
Operation Type: 1-Pole, 3-Way
Voltage Rating: 120/277 Volt AC 60 Hertz
Load Type: Dimmable LED, Fluorescent 0 to 10 Volt Ballast
Load Rating: 1200/1600 Watt
Wall Plate Type: Decorator
Finish: Gloss Light Almond/White/Ivory
Size: 1.8 Inch Width x 1.29 Inch Depth x 4.2 Inch Height
Application: Commercial, Residential
Approval: UL (Canada and US), UL 1472, NOM 426
