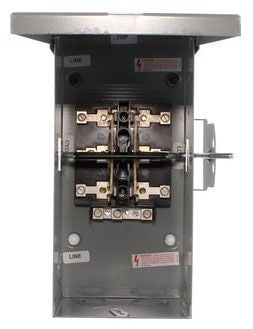

ABB GE Industrial Solutions TC10323R Safety Switch

Designed For Residential or Light Commercial Applications Where Duty is Not Severe; Suitable for Use as Service Entrance Equipment When Installed in Accordance with National Electrical Code; Plated Copper Current-Carrying Parts Increase Longevity and Performance; Bonding Strap Can be Used to Ground Neutral for Service Entrance Applications; Positive Make and Break is Provided by Fiber Loop Straps between Knife Blade Contacts and 1-Piece Operating Yoke; Lockable 3-Position (On-Off-On) Handle; Galvanized Steel Enclosure with Drip Shield

Specifications:

Type: Emergency Power Transfer Switch, Service Entrance Equipment
AC Voltage Rating: 120/240 Volt
Current Rating: 100 Amp
Power Rating: 7 HP at 120/240 Volt AC 3-Phase (NEC Standard)
Number of Poles: 2
Number of Wires: 3
Fuse Provision: Non-Fusible
Neutral Type: No
Enclosure: NEMA 3R
Size: 7.2 Inch Width x 5.22 Inch Depth x 15.13 Inch Height
Approval: UL 98
