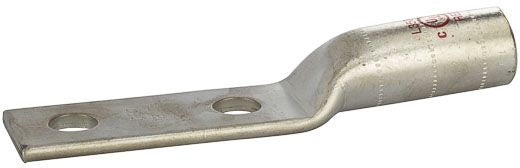

Produced from High Conductivity Copper Tubing; Allows Easy Inspection of the Termination to Assure Complete Cable Insertion; Tin Plated to Provide Corrosion and Low Contact Resistance; Marked with Die Index and Color Coded; Listed for 35 Kilovolt Maximum when Properly Installed; For Applications Greater than 2000 Volt, Installed to Cable Manufacturer for Voltage Stress Relief Instructions

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 1/0 AWG Stranded
Barrel Type: Long
Barrel Length: 1.2 Inch
Pad Size: 2.99 Inch Length x 0.74 Inch Width x 0.12 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 3/8 Inch
Color: Pink
Die Index: CD6 (NSI), KC12-1/0 (NSI/Greenlee), ILD-5/ILD-42 (ILSCO), U25RT (Burndy), 15508 (T and B), HT41AY (Huskie)
Material: Tin Plated Copper
Overall Length: 4.63 Inch
Approval: UL 486/486A/467, UL (Canada and US)
