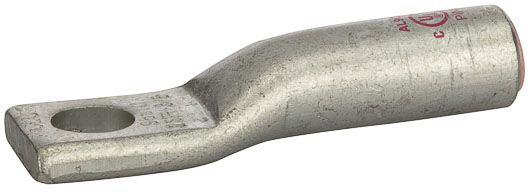

NSi Industries AL238 Compression Cable Lug

Out of stock
SKU: 296841
Regular price $9.73
OR

Produced from High Conductivity Aluminum Tubing; Electro Tin Plated for Corrosion Resistance; Color Coded and Marked with Die Index Information; Pre-Filled with Oxide Inhibitor and Capped with Color Coded Cap; Listed for 35 Kilovolt Maximum When Properly Installed to Cable Manufactures Specifications

Specifications:

Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 2 AWG
Barrel Type: Standard
Barrel Length: 1.2 Inch
Pad Size: 0.88 Inch L x 0.71 Inch W x 0.22 Inch Thk
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Pink
Die Index: 7/348/42
Material: Electro Tin Plated Aluminum
Overall Length: 2.5 Inch
Approval: UL 486A/B, UL (Canada and US)
