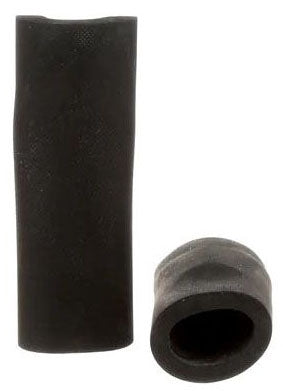

3M 5301 Motor Lead Pigtail Splice Kit

In stock - 10 items available
SKU: 298004
Regular price $66.25
OR

3M 5300 Series Motor Lead Pigtail Splice Kit is perfect to use with copper compression, 1-hole lugs. It is designed to splice motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000V or less. The kit can make 3 splices and can be used on cables that can withstand a maximum temperature of 194 degrees F (90 degrees C). 3M 5300 Series Motor Lead Pigtail Splice Kit contains 3 each of pigtail lug covers, mastic sealing strips, tubes of silicone grease and locking pins plus an instruction sheet. It is designed for use with copper compression, 1-hole lugs. Its slip-on lug cover has EPDM rubber construction while mastic strips in the kit seal moisture. After being crimped onto the cables, use this kit to insulate and seal the lugs that are bolted together in a pigtail configuration. CSA Certified and RoHS 2011/65/EU Compliant.

Specifications:

Voltage Rating: 1 Kilovolt
Cable Type: Non-Shielded
Connector Type: 1-Hole Copper Lug
Feeder Cable Size: 10 to 4 AWG
Motor Lead Cable Size: 12 to 4 AWG
Number of Splices: 3
Contents: (3) Pigtail Lug Cover, (3) Mastic Sealing Strip, (3) Tube of Silicone Grease, (1) Instruction Sheet
Approval: UL, CSA
