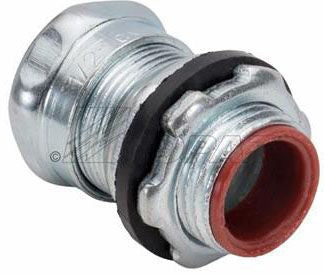

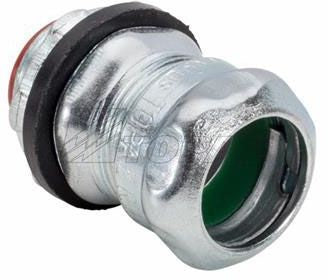

The Topaz line of efficient and dependable EMT connectors feature a compression type assembly and provide a rain tight and concrete tight connection to prevent damage from the elements and ensure continued high performance. Rugged steel construction with zinc plated finish helps preserve integrity; assemblies include steel locknut and gasket. Used to securely bond EMT thin wall conduits to electrical boxes or enclosures. Insulated throat models provide additional protection against abrasion. UL listed. NEMA/ANSI FB-1 compliant.

Specifications:

Type: Compression
Throat Type: Insulated
Trade Size: 1 Inch
Diameter: 1.687 Inch
Length: 1.25 Inch
Thread Length: 0.562 Inch
Material: Zinc Plated Steel
Constructional Feature: Concrete-Tight, Raintight
Standard Package: 100 per Case
Approval: UL, CSA
Used On: EMT Conduit
