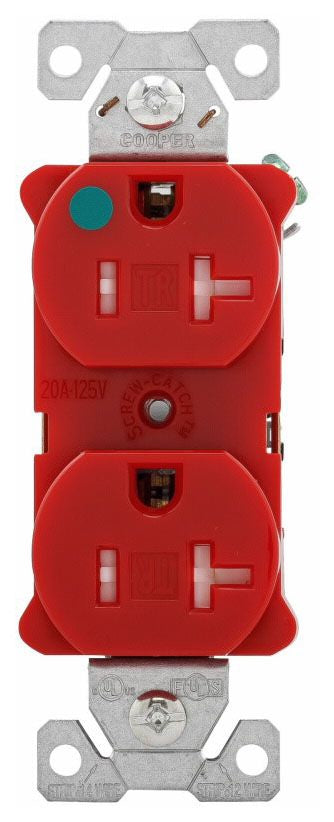

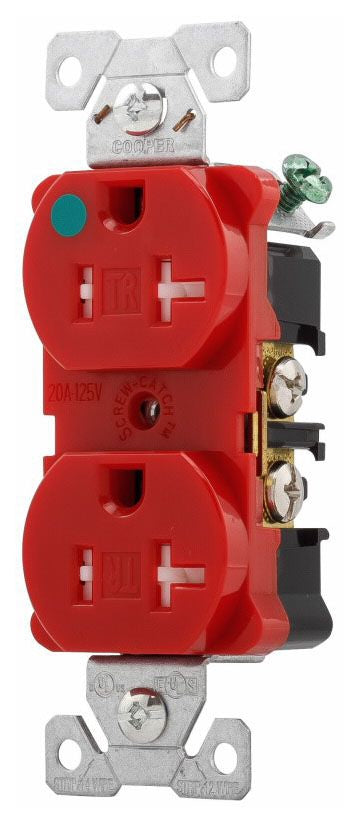

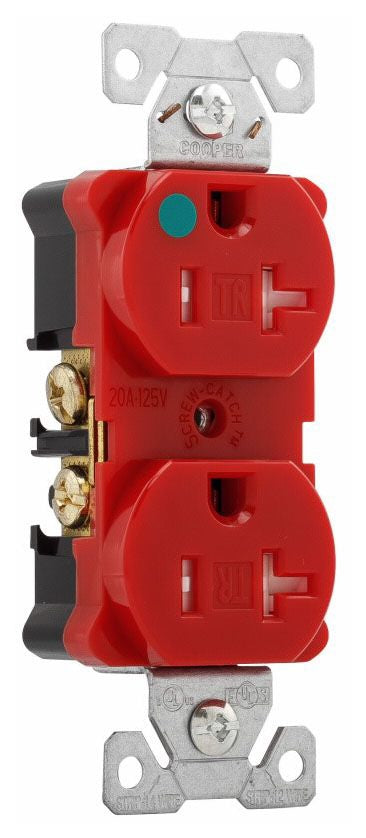

Arrow Hart TR8300RD Straight Blade Receptacle

High performance receptacles for the most demanding of environments Arrow Hart’s offering of straight blade receptacles cover the full range of hospital, industrial, construction and commercial grades along with special solutions like corrosion resistant, severe duty insulated and watertight straight blade receptacles for complex environments. Arrow Hart’s feature rich line of hospital grade receptacles have been designed to meet and exceed the demanding requirements of UL498 and federal specification WC-596 to provide a consistent means of connectivity where downtime can be critical.

Specifications:

Type: Duplex, Straight Blade
Constructional Feature: Chemical/Impact/Tamper Resistant
Configuration: NEMA 5-20R
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Material: Nylon (Face), PVC (Base), 0.046 Inch Thickness Zinc Plated Steel (Strap)
Color: Red
Wiring: Back, Side
Grade: Hospital
Approval: UL (Canada and US), UL 498, NOM 426
