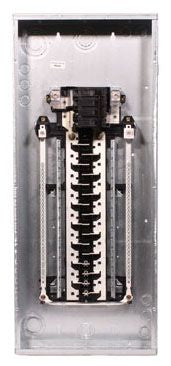

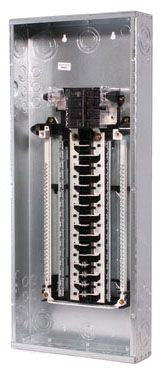

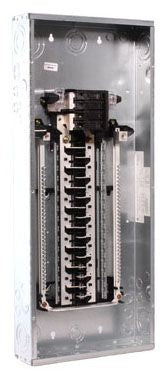

1-Piece Interior Removes and Reinstalls Easily; Full-Length Neutrals are Easier to Wire Reducing Installation Time and Cost; Minimum 100% Neutral Terminations; Sturdy Copper Bus and Galvanized Box Increase Durability and Reliability; Main Breaker Configuration Allows Top or Bottom Feed without Modification; Combination Slotted/Robertson Square-Drive Speeds Screw Wiring; 100% Rated Split Neutral on Each Side; Tie Bar May be Removed to Split Neutral/Ground

Specifications:

Type: Main Breaker
Voltage Rating: 120/240 Volt AC
Current Rating: 200 Amp
Circuit Configuration: 1-Phase 3-Wire
Maximum Number of Circuits: 32
Maximum Number of Spaces: (32) 1-Pole 1 Inch/(16) 2-Pole 1 Inch/1-Pole 1/2 Inch/2-Pole 1/2 Inch
Breaker Mounting: Plug-In
Interrupting Rating: 22 Kiloamp
Neutral Type: Split
Bus Material: Tin Plated Copper
Feed Location: Top/Bottom
Main Wire Size: 1 AWG to 250 KCMIL (Copper), 2/0 AWG to 250 KCMIL (Aluminum)
Enclosure Type: NEMA 1, Indoor
Cover Type: Flush/Surface
Enclosure Size Designation: 11
Size: 14 Inch Width x 3-3/4 Inch Depth x 33-3/16 Inch Height
Approval: UL
