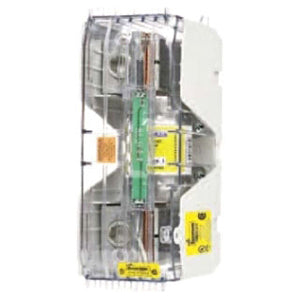

The Patented Class J Power Distribution Fuse Blocks Use Fewer Wire Connections to Reduce Watt Loss and Overall Operating Temperature of the Panel, while Simplifying Panel Layout; All Block are Equipped with a Fuse Clip Reinforcing Spring to Minimize Temperature Rise while Maintaining Reliable Surface Contact Between the Fuse and Clip over the Block Service Life; RoHS Compliant

Specifications:

Type: Barrier
Material: Thermoplastic
Number of Poles: 3
Fuse Type: Class J
Fuse Voltage Rating: 600 Volt
Fuse Current Rating: 450 to 600 Amp
Wire Size: (2) 4 AWG to 500 KCMIL (Solid/Stranded)
Terminal Type: Box Lug with Slot Screw
Clip Type: Spring Reinforced
Approval: UL, CSA, CE
