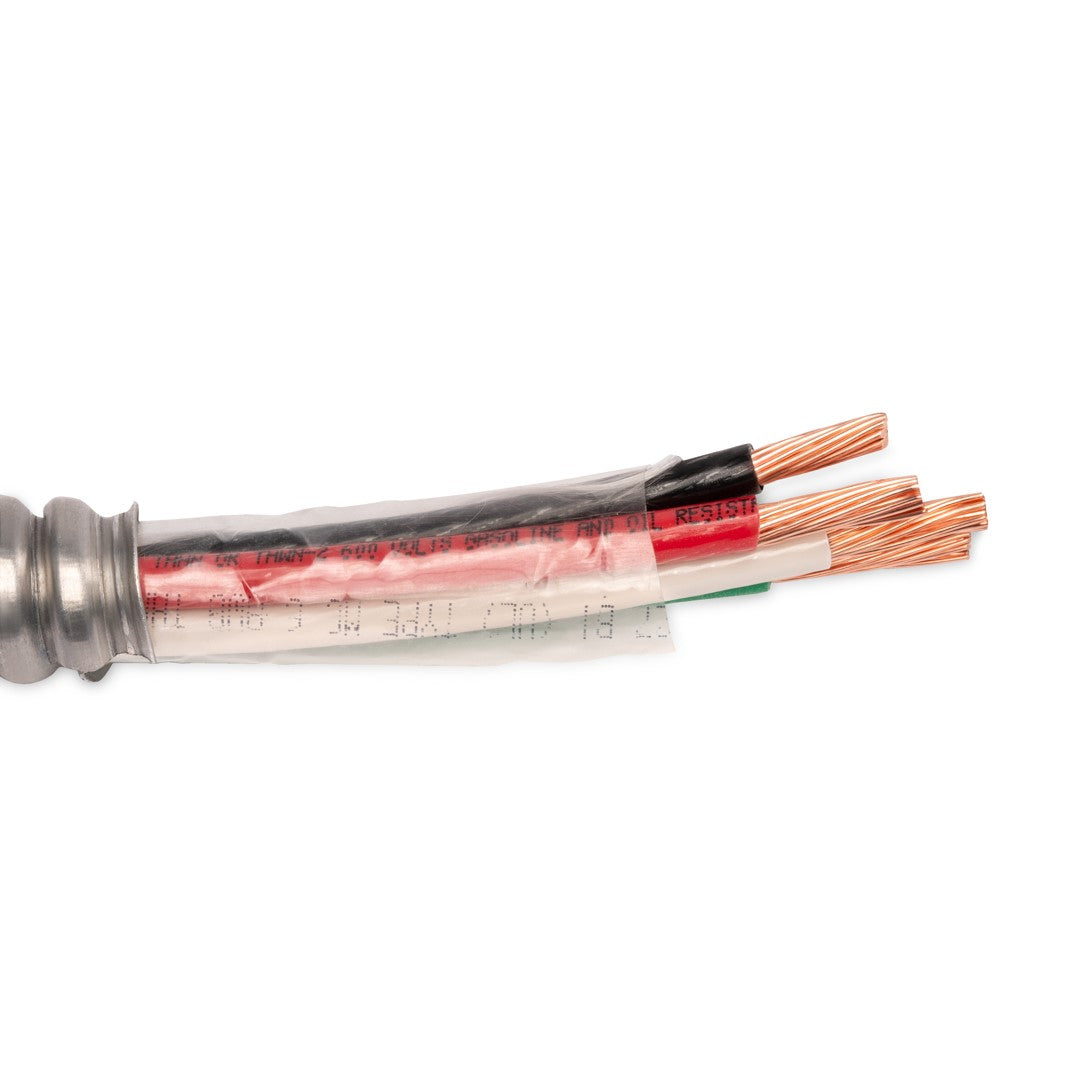

3/3 Metal Clad (MC) Cable with Ground, Aluminum Armored, Stranded Copper Conductors

Applications:
Branch, feeder or service power distribution in commercial, industrial, institutional and multi-residential buildings. Lighting, power, control and signal circuits. Fished or embedded in plaster, concealed or exposed installations. Environmental air handling spaces per NEC 300.22 (C). Places of assembly and theaters. Under raised floors for technology equipment conductors and cables. Installation in cable tray and approved raceways. Class I Div.2, Class II Div.2, Class III Div. 1 Hazardous Locations. Voltage rating for all applications is not to exceed 600 Volts.

Standards:•
ASTM B-3, B-8 and B-787
UL 83, UL 1569, UL 1581 and UL 2556
NEC 2014 : 300.22 (C), 310.10, 330,392, 518, 520, 530, 645
NFPA 70
Federal Specification A-A59544
IEEE 1202 (70,000 BTU/hr) Vertical Flame Test/FT4
CT Rated for 600 Volts if installed per the NEC directives
Rated for 1 and 2 hour Through Penetration
RoHS Compliant
ARRA 2009 Buy American Compliant

Specifications:

Conductors: 3 + 1 Ground (4 total conductors)
Size: 3 AWG
Ground Size: 6 AWG
Outside Diameter: 1.009 inches
Weight: 1.175 per ft.
