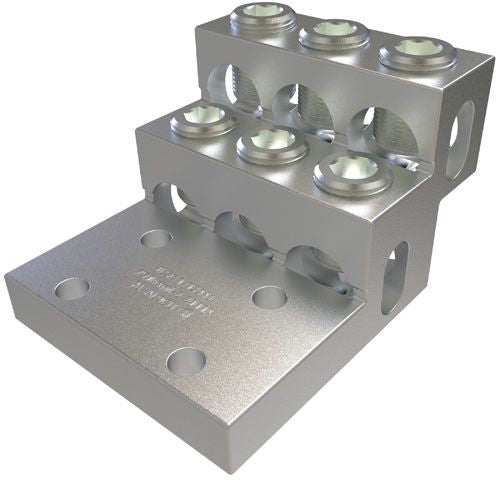

Ilsco PBHD6-750 Panelboard Lug

Provides Low Contact Resistance; Provides Greater Resistance to Pull Out; Saves Space and Reduces Installation Time; Application Versatility; Suitable for Use in Circuits Rated 35 Kilovolt or Less, Proper High Voltage Spacing and Insulation Techniques Must be used; RoHS Compliant

Specifications:

Type: Heavy Duty, Stacked, Dual Rated
Number of Conductors: 6
Minimum Conductor Size: 2 AWG
Maximum Conductor Size: 750 KCMIL
Conductor Material: Copper/Aluminum
Pad Type: Offset
Screw Type: 1/2 Inch Hex Head
Material: Electro Tin Plated 6061-T6 Aluminum Alloy
Number of Pad Holes: 4
Pad Size: 2.35 Inch Length x 3.84 Inch Width x 0.75 Inch Thickness
Stud Size: 3/8 Inch
Overall Length: 5.005 Inch
Approval: UL 486A/B , CSA
