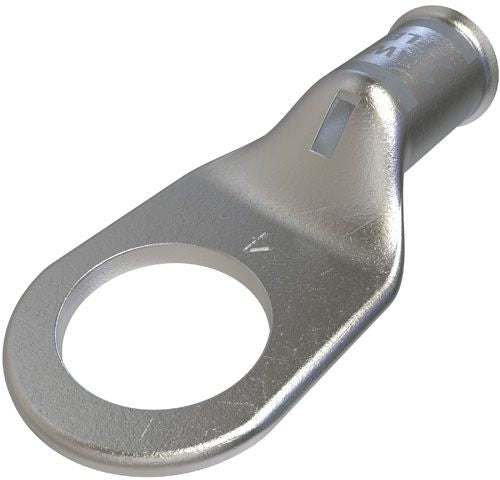

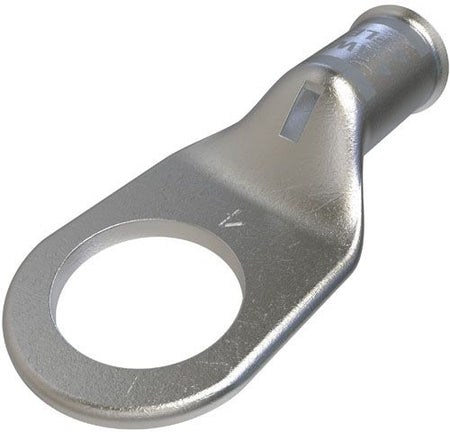

Ilsco CCL-4-12 Compression Cable Lug
Regular price
$2.49
Couldn't load pickup availability
Electro Tin Plated Provides Low Contact Resistance; Sight Hole Visual Inspection of Proper Liable Insertion; Solid Seamless Tang for Performance and Strength; Electrolytic Copper for High Conductivity; Application Versatility; RoHS Compliant
Specifications:
Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 4 AWG
Barrel Length: 0.475 Inch
Pad Size: 0.858 Inch L x 0.752 Inch W x 0.091 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Gray
Material: Electro-Tin Plated Electrolytic Copper
Overall Length: 1.681 Inch
Approval: UL 453G, CSA
