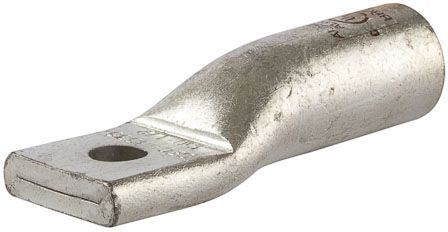

Produced from High Conductivity Aluminum Tubing; Electro Tin Plated for Corrosion Resistance; Color Coded and Marked with Die Index Information; Pre-Filled with Oxide Inhibitor and Capped with Color Coded Cap; Listed for 35 Kilovolt Maximum When Properly Installed to Cable Manufactures Specifications

Specifications:

Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 350 KCMIL
Barrel Type: Standard
Barrel Length: 1.9 Inch
Pad Size: 1.5 Inch L x 1.52 Inch W x 0.39 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Brown
Die Index: 15/299/87
Material: Electro Tin Plated Aluminum
Overall Length: 4.25 Inch
Approval: UL 486A/B, UL (Canada and US)
